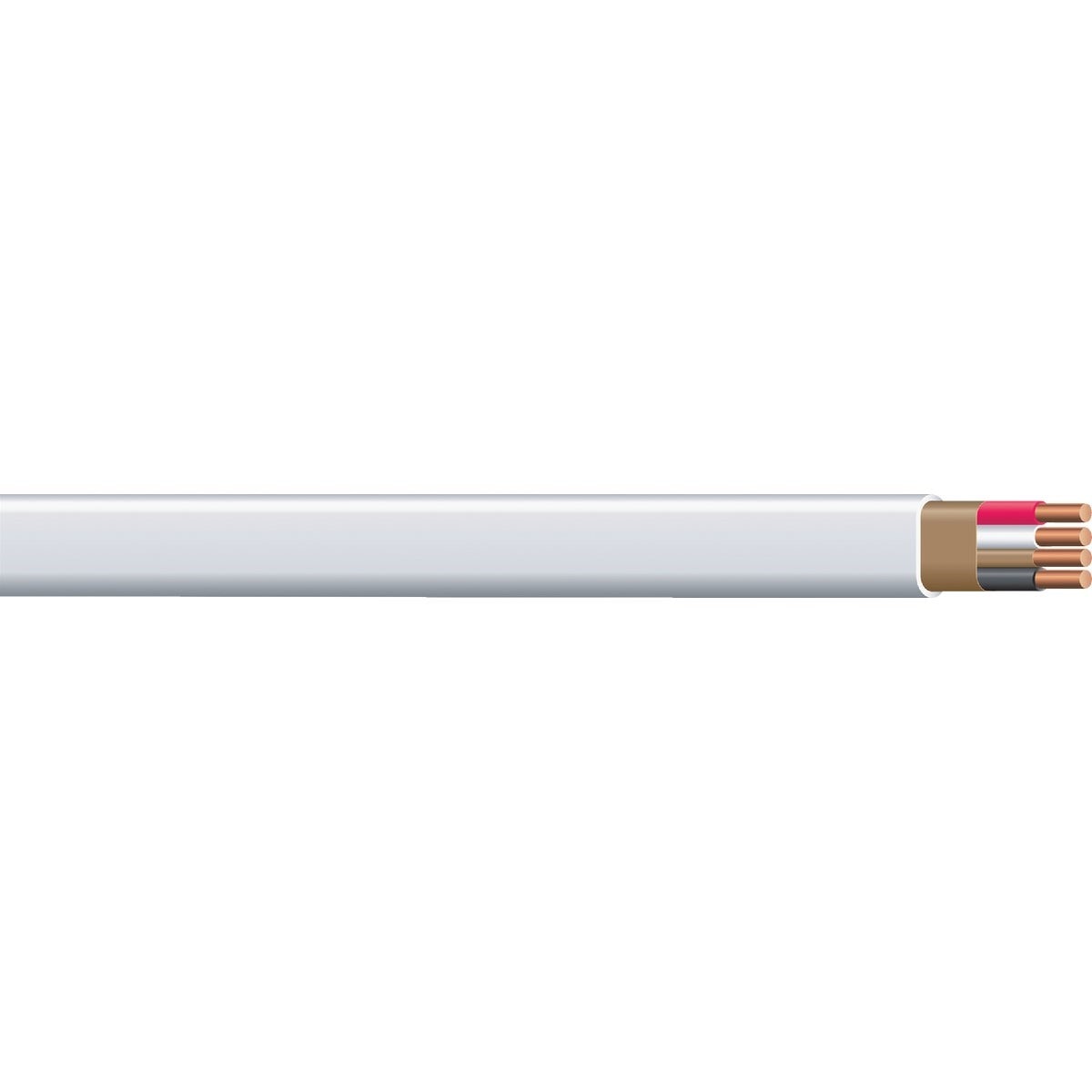

Romex 63946855 Nm-b Wire 14/3 Solid 600V 250 Ft

Product Description

The ROMEX 63946855 is a 250-foot roll of 14/3 solid conductor NM-B (Type NM-B) electrical cable with ground, rated for use up to 600 volts. The cable features a PVC outer jacket with PVC-insulated, nylon-jacketed individual conductors and a bare ground wire. It is designed for residential and commercial branch circuit wiring where a three-conductor-plus-ground configuration is required. The flame-retardant, crush-resistant construction meets the demands of standard rough-in and finish wiring work. Licensed electricians and experienced electrical contractors are the primary installers of this cable type.

This cable is suited for residential and light commercial branch circuit applications where a 14 AWG, three-conductor-plus-ground run is specified. It is intended for above-ground installation in dry locations only. Common applications include wiring of outlets, lighting circuits, and other 15-amp branch circuits where a neutral, hot, and switched-leg arrangement is needed. The 250-foot roll length is practical for larger rough-in jobs requiring extended runs.

Key Features

• 14/3 solid conductor configuration with ground wire included
• Rated to 600 volts for standard branch circuit service
• PVC outer jacket with PVC-insulated, nylon-jacketed conductors for durability
• Flame-retardant and crush-resistant construction
• UL Listed for code-compliant installations
• 250-foot roll minimizes splice points on longer runs

Compatibility

Designed as a standard NM-B Type cable for use in residential and commercial branch circuit wiring systems where 14/3 solid conductor cable with ground is specified per applicable electrical codes.

Installation Notes

Installation must be performed by a licensed electrician in accordance with the National Electrical Code (NEC) and all applicable local codes. This cable is approved for dry, above-ground locations only and must not be installed in wet, damp, or direct-burial conditions. Always de-energize the circuit and verify the absence of voltage before making any connections. Avoid sharp bends, staple over-driving, or mechanical damage to the jacket during installation.

Technical Specifications

• Cable Type: NM-B (Type NM-B)
• Conductor Size: 14 AWG
• Configuration: 3 conductors plus ground (14/3 WG)
• Voltage Rating: 600 volts
• Conductor Type: Solid
• Jacket Material: PVC (polyvinyl chloride)
• Conductor Insulation: PVC with nylon jacket
• Length: 250 feet
• Unit of Measure: Roll
• Weight: 19 pounds
• Listing: UL Listed

Standard Information

• Brand: ROMEX
• Manufacturer Part Number: 63946855
