Romex 28829055 Nm-b Wire 10/2 Solid 250 Ft 600V

Product Description

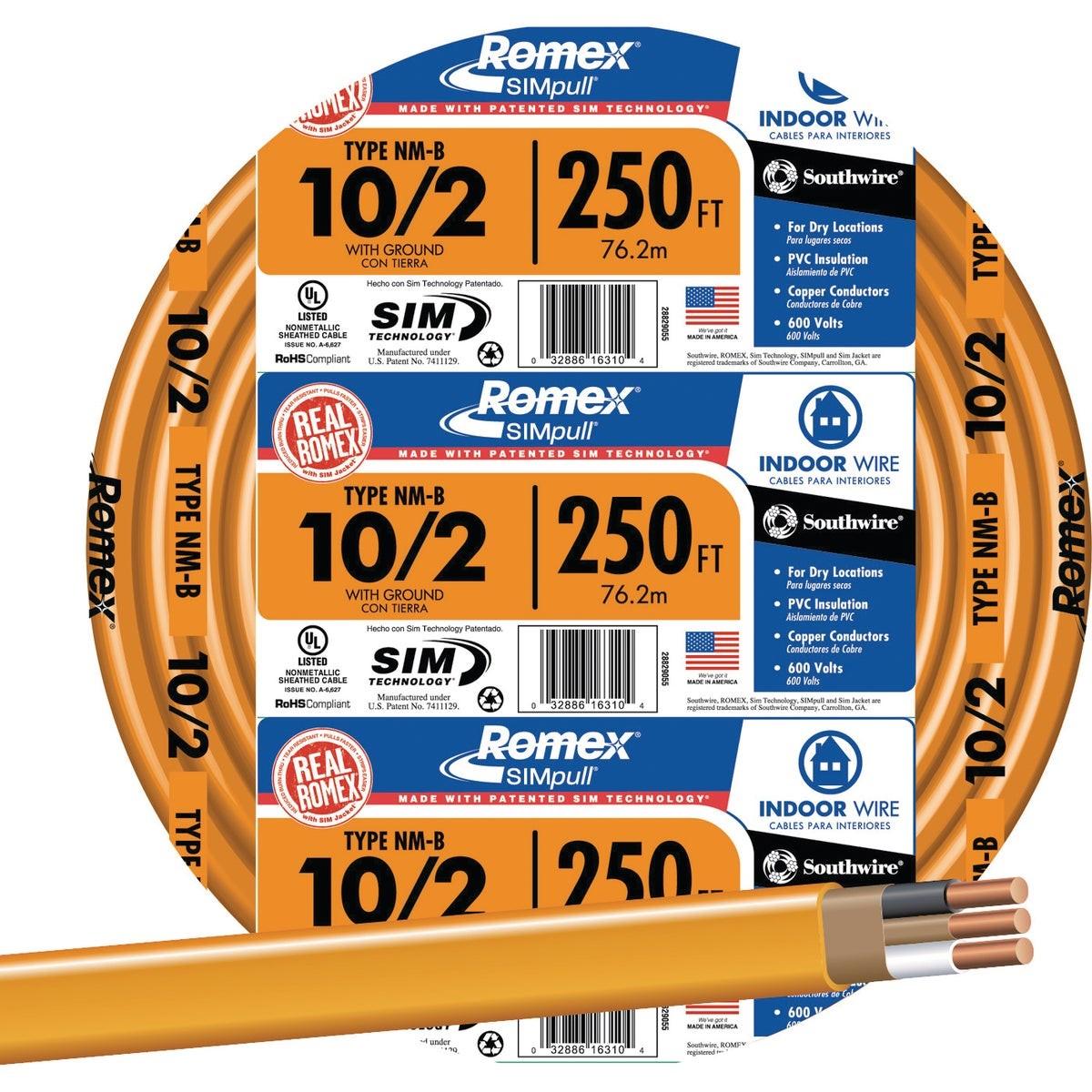

The ROMEX 28829055 is a 250-foot roll of 10/2 solid NM-B electrical wire rated for service up to 600 volts. The cable features a PVC outer jacket over nylon-jacketed, PVC-insulated conductors and carries a UL listing for use in residential and light commercial branch circuit wiring. The orange jacket identifies this as 10 AWG wire, making it a common choice for circuits serving appliances, water heaters, and similar 30-amp loads. The construction is flame-retardant and crush-resistant for added durability in standard building environments. Licensed electricians install this wire during rough-in wiring of new construction and renovation projects.

This NM-B cable is suited for branch circuit wiring in residential and commercial structures. It is approved for above-ground installation in dry locations only. Typical applications include wiring for kitchen appliances, HVAC equipment circuits, water heaters, and dedicated outlet circuits where a 10 AWG conductor is specified by the load calculation or local code. The 250-foot roll length supports full-room or multi-outlet runs without mid-run splicing on many standard residential jobs.

Key Features

• 10/2 solid conductor configuration with ground, rated to 600 volts
• PVC outer jacket with PVC-insulated, nylon-jacketed conductors
• Flame-retardant and crush-resistant construction
• UL listed for residential and commercial branch circuit use
• Orange jacket color identifies 10 AWG gauge at a glance
• 250-foot roll minimizes mid-run splicing on longer circuits

Compatibility

Designed as an OEM-style replacement and standard supply for residential and light commercial branch circuit wiring applications requiring 10/2 NM-B cable in dry, above-ground installations.

Installation Notes

Installation must be performed by a licensed electrician in accordance with the National Electrical Code (NEC) and applicable local codes. De-energize and lock out the panel before pulling or terminating this cable. This wire is rated for dry locations and above-ground runs only — do not install in wet, damp, or direct-burial conditions. Verify that the circuit breaker ampacity and box fill calculations match the 10 AWG conductor rating before energizing.

Technical Specifications

• Wire Gauge: 10 AWG
• Configuration: 10/2 Solid with Ground
• Cable Type: NM-B
• Voltage Rating: 600 volts
• Length: 250 feet
• Jacket Material: PVC (polyvinyl chloride)
• Conductor Insulation: PVC with nylon jacket
• Jacket Color: Orange
• Unit of Measure: Roll
• Weight: 30.55 pounds
• Certifications: UL Listed

Standard Information

• Brand: ROMEX
• Manufacturer Part Number: 28829055
