Romac ALPHA-A-11.20 Alpha Restrained Coupling 10.75-11.20 OD Range

Product Description

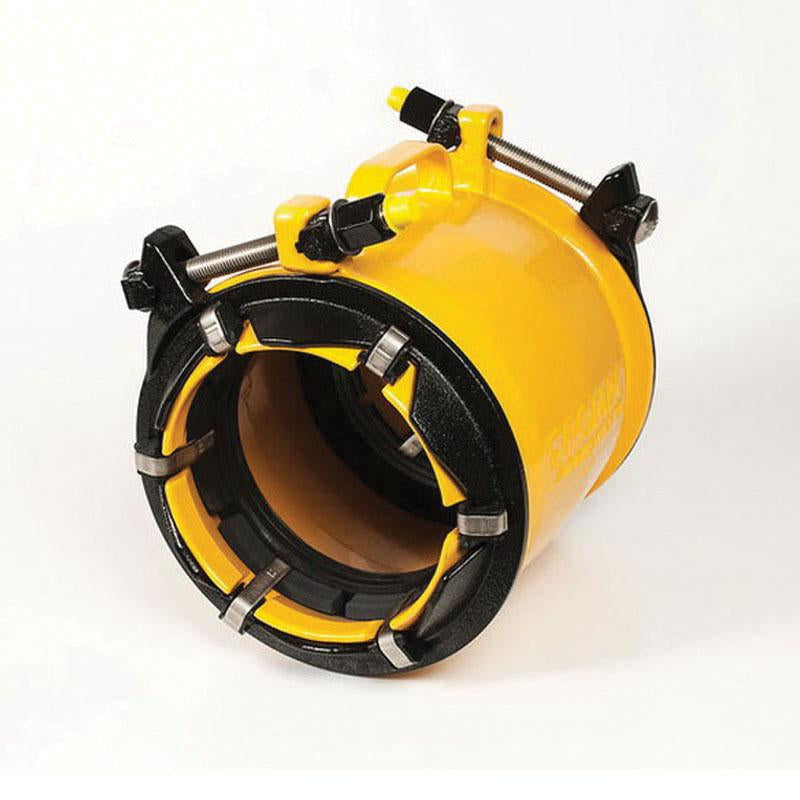

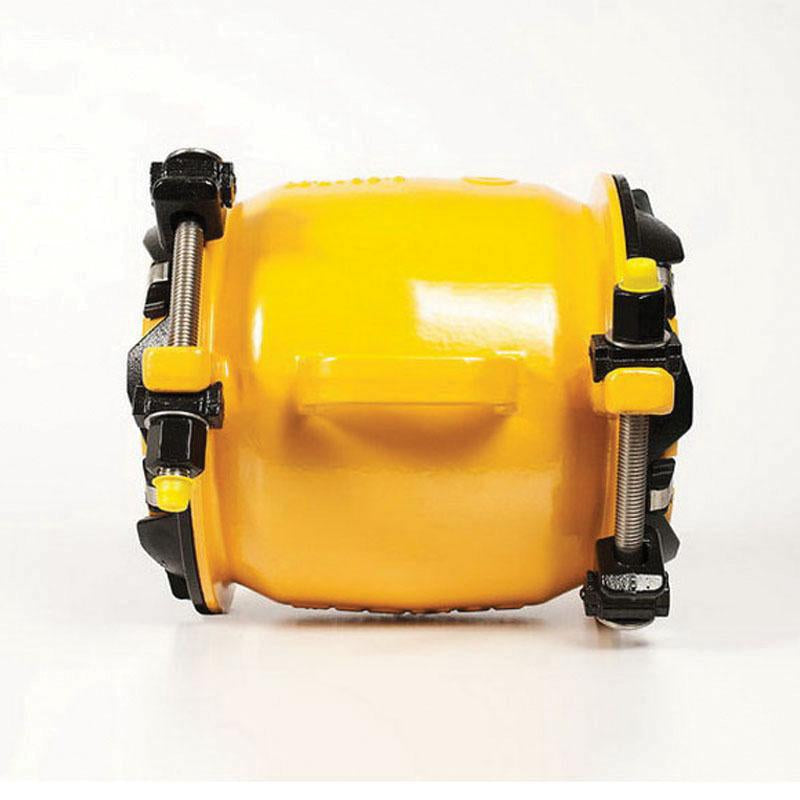

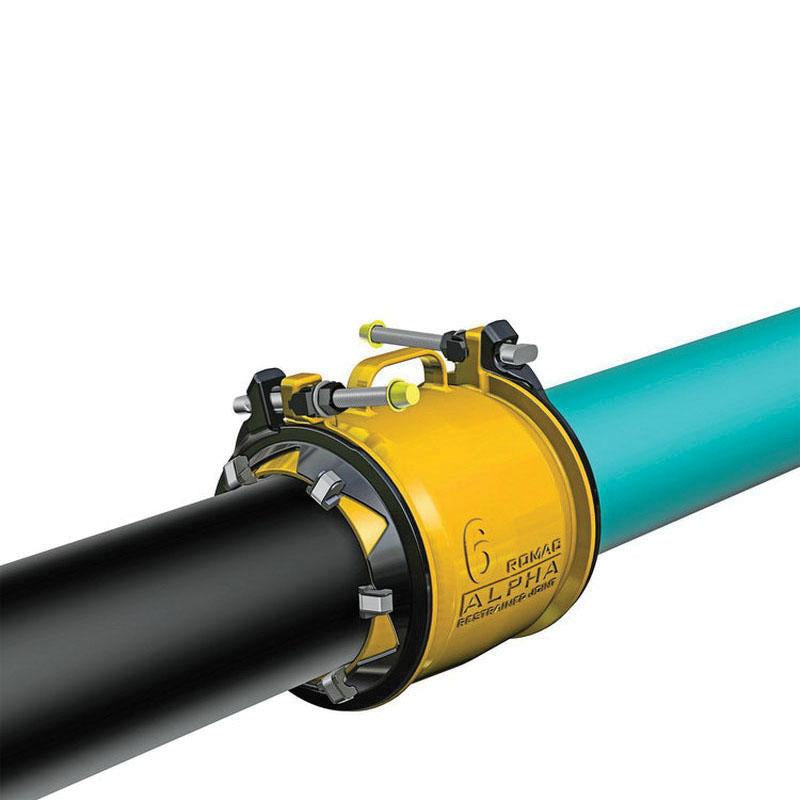

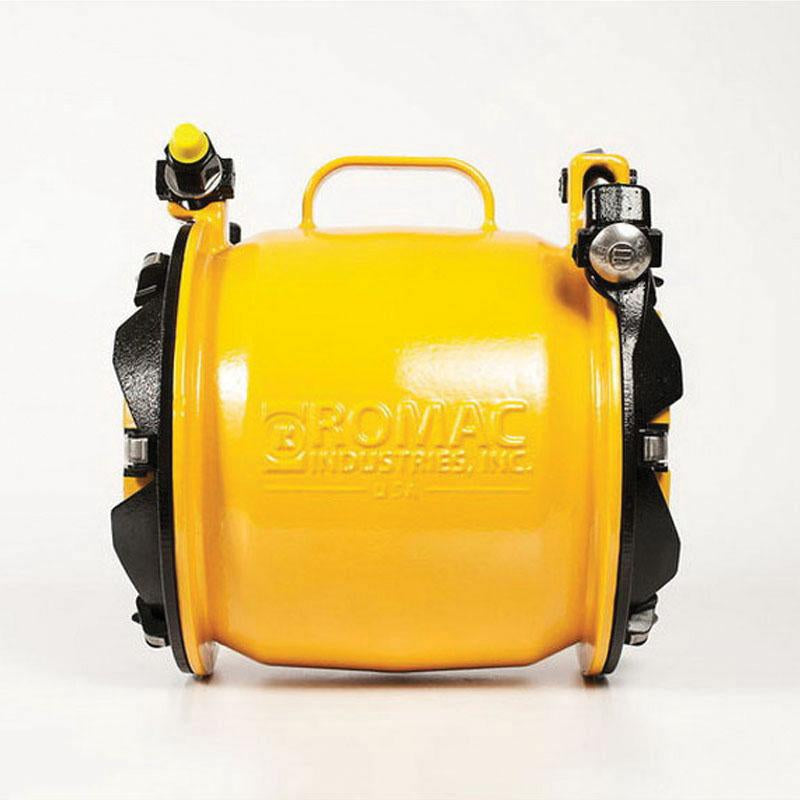

The Romac ALPHA-A-11.20 is a 2-bolt wide range restraint coupling. It is designed for 10 in pipes and has a length of 13.2 in. The coupling is made from ductile iron with an epoxy-coated finish and is domestic. It has a pressure rating of 350 psi.

• Standard ALPHA covers IPS PVC through ductile iron pipe diameters
• ALPHA can be configured to transition from IPS PVC up to oversize cast iron pipe diameters
• One-piece, stab-fit installation

Product Highlights

The Romac ALPHA-A-11.20 coupling offers a stab-fit installation and accommodates up to 8 degrees of deflection. It is suitable for use with IPS PVC and ductile iron pipe diameters.

Product Information

Standard Information

• Brand: ROMAC
• Manufacturer Part Number: ALPHA-A-11.20

Technical Specifications

• Additional Information: Domestic
• Finish: Epoxy-Coated
• Length: 12-3/4 in.
• Material: Ductile Iron
• Pipe Size: 10 in
• Pressure Rating: 350 psi
• Series: ALPHA Series
• Nominal Size A: 10 inch
• Nominal Size B: 10 inch
• Standards: AWWA, NSF, ASTM
• Outer Diameter: 15.54 inch
• Size: 10 in. x 11-1/5 in.
• Specifications - NSF: NSF 61G
• Specifications - NSF Certified: Yes
• Product Type: Repair Clamps & Couplings
