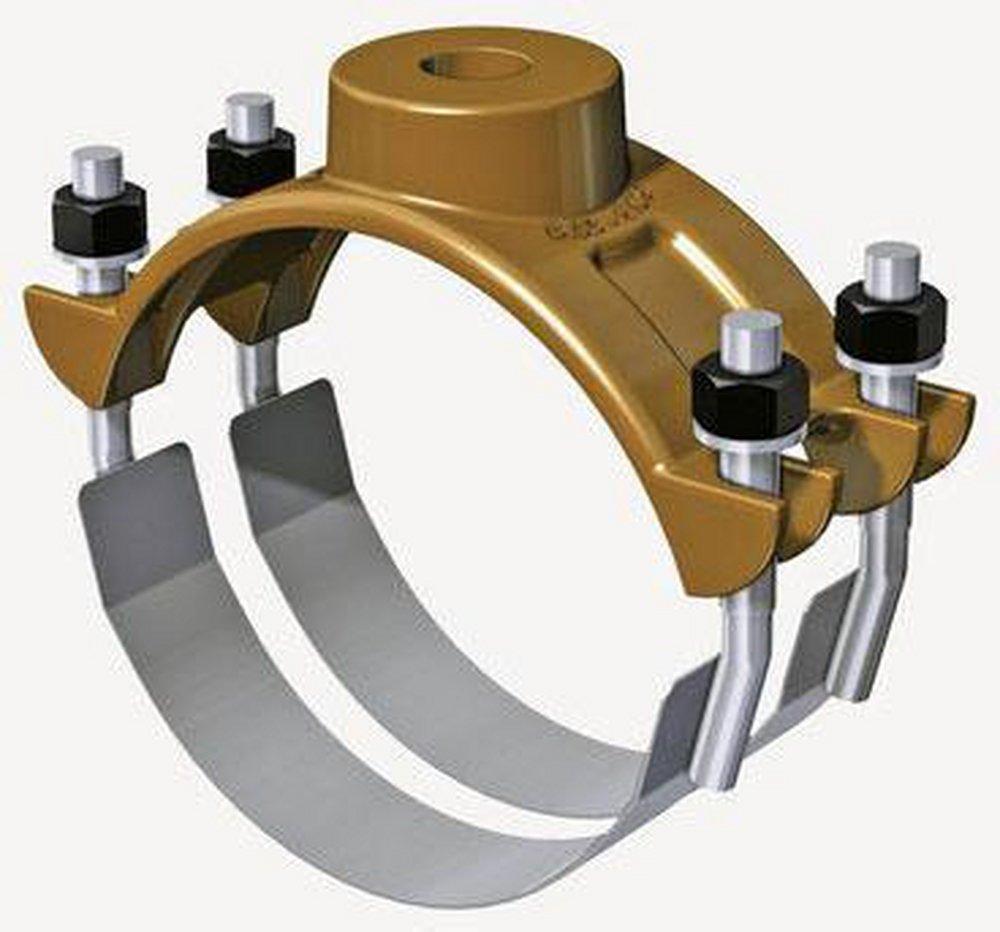

Romac 294-090572 Bronze Double Strap Saddle 8 in Pipe

Product Description

The ROMAC 294-090572 is a double strap bronze saddle fitting designed for tapping into 8-inch water mains and distribution piping. It accepts a 2-inch NPT tap and is rated to 200 psi, making it suitable for municipal and commercial water service connections. The bronze body resists corrosion in buried and above-grade installations. NSF certified and conforming to AWWA C-800, this fitting meets the standards required on potable water systems. Plumbers, waterworks contractors, and utility crews install this saddle when adding a new service branch or corporation stop to an existing main without taking the line out of service.

This saddle is engineered for use on C900 PVC pipe and ductile iron pipe in 8-inch nominal diameter applications. The double strap design distributes clamping load evenly around the pipe barrel, maintaining a leak-free seal at the tap point. With a pipe OD range of 9.05 inches and a strap width of 4.5 inches, it provides solid contact area for high-pressure service work. Typical applications include residential and commercial water service taps, fire line connections, and irrigation main tees on municipal distribution systems. Manufactured in the USA.

Key Features

• Double strap design for even clamping load on C900 PVC and ductile iron pipe
• 2-inch NPT tap outlet for direct corporation stop or valve installation
• 200 psi maximum working pressure rating
• NSF certified for potable water service
• Conforms to AWWA C-800 standard
• Made in USA

Compatibility

Designed for use on 8-inch C900 PVC pipe and 8-inch ductile iron pipe with an outside diameter of 9.05 inches. End connection is 2-inch NPT.

Installation Notes

Installation should be performed by a licensed plumber or waterworks contractor in accordance with AWWA standards and local utility specifications. Shut off or isolate the main segment where required by local code before drilling the tap. Torque strap bolts evenly and in alternating sequence to achieve uniform gasket compression across the saddle. Verify the tap thread engagement and pressure-test the connection before returning the line to service.

Technical Specifications

• Fitting Type: Saddle
• Material: Bronze
• Fits Pipe Size: 8 inches
• Pipe OD Range: 9.05 inches
• Tap Size: 2 inches
• End Connection: NPT
• Strap Width: 4.5 inches
• Maximum Pressure: 200 psi
• NSF Certified: Yes
• Standard: AWWA C-800
• Country of Origin: USA

Standard Information

• Brand: ROMAC
• Manufacturer Part Number: 294-090572
