Romac 286-090542 202NS Saddle 8 inch

Product Description

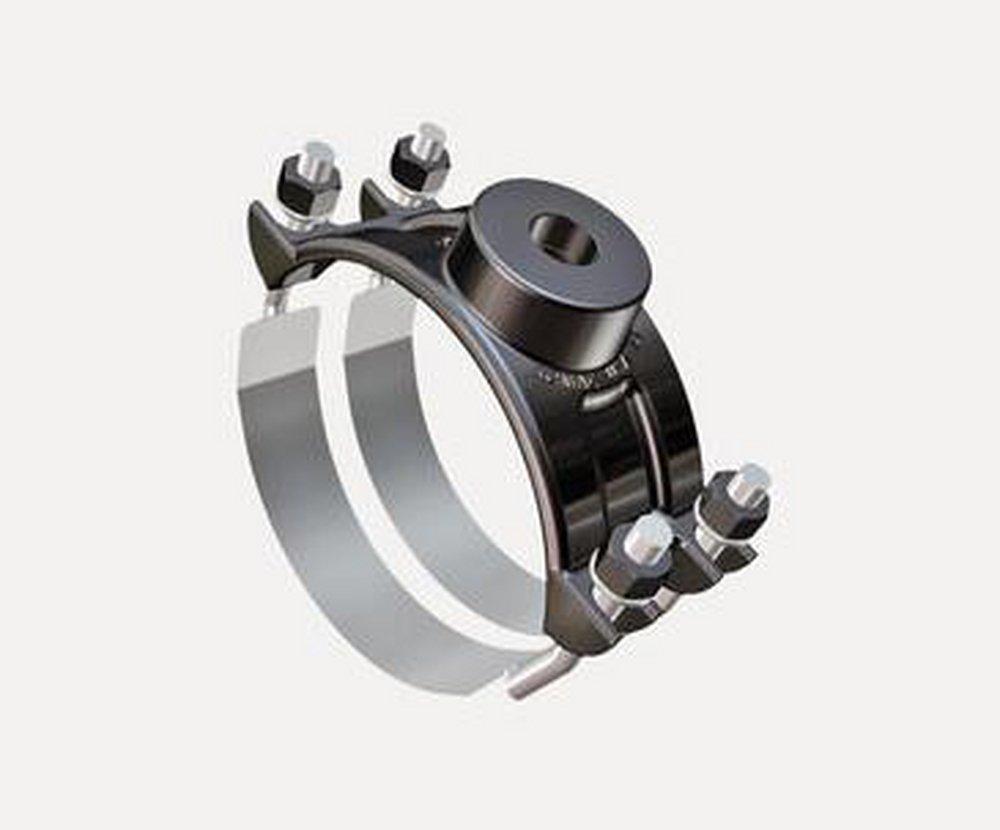

The ROMAC 286-090542 202NS saddle is designed for use on steel, cast iron, asbestos cement, and plastic pipes. It features a ductile iron body with NBR gasket and 304 stainless steel U-bolt/nut/washer. The saddle has a 10 to 12 mil fusion bonded black nylon coated finish and double strap mounting type.

• Ductile iron body with NBR gasket
• 304 stainless steel U-bolt/nut/washer
• 10 to 12 mil fusion bonded black nylon coated finish

Product Highlights

Designed for durability and versatility across various pipe materials, ensuring a secure and reliable connection.

Product Information

Standard Information

• Brand: ROMAC
• Manufacturer Part Number: 286-090542

Technical Specifications

• AWWA: AWWA C-800
• End Connection 1: FIPT
• End Connections: FIPT
• Fits Pipe Size: 8 in
• Material: Plastic, Stainless Steel
• Pressure - Maximum: 350 psi
• Tap Size: 1
• MATERIAL: DUCTILE IRON (BODY), NBR (GASKET), 304 STAINLESS STEEL (U-BOLT/NUT/WASHER)
• FINISH: 10 TO 12 MIL FUSION BONDED BLACK NYLON COATED
• APPLICABLE STANDARD: ANSI/AWWA C800, ANSI/NSF 61/372
• MATERIAL SPECIFICATION: ASTM A194/A240/A536/D2000
• PRESSURE RATING: 350 PSI
• MOUNTING TYPE: DOUBLE STRAP
• NOMINAL PIPE SIZE: 8 INCH
• OUTLET CONNECTION: 1 INCH IP THREADED
• PIPE OUTER DIAMETER: 8.63 TO 9.05 INCH
• USED ON: STEEL, CAST IRON, ASBESTOS CEMENT AND PLASTIC PIPE
• MODEL: 202NS
