Romac 269-070016 Alpha End Cap 6 inch

Product Description

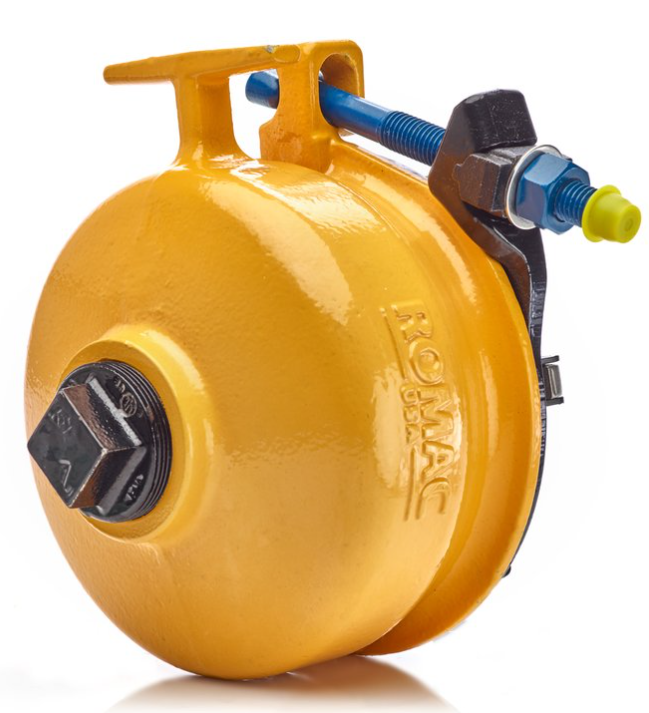

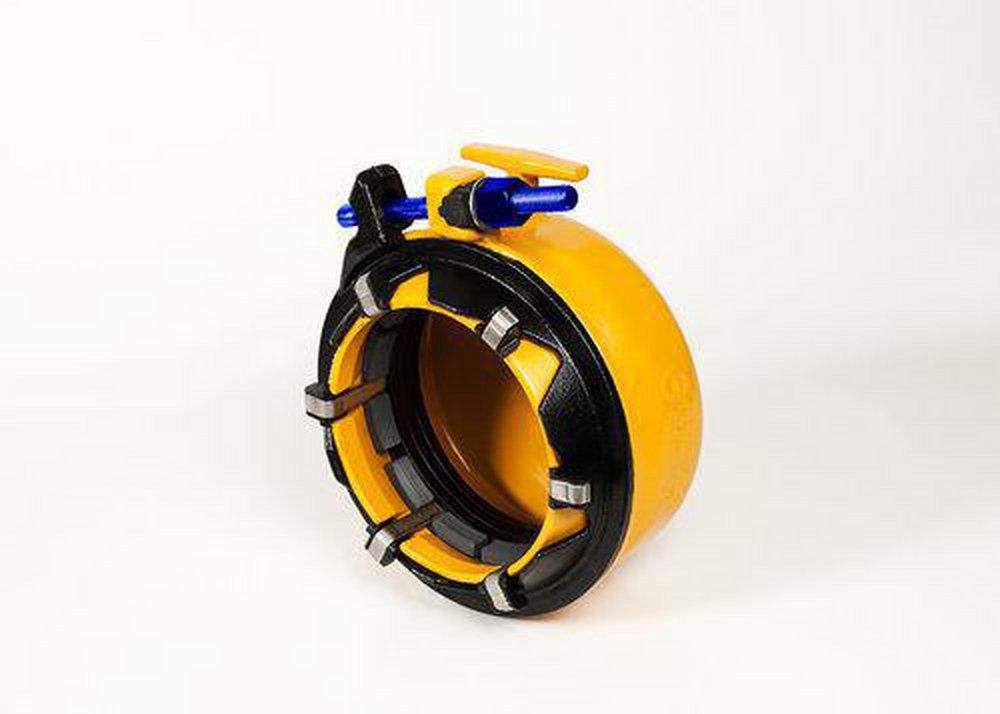

The ROMAC 269-070016 Alpha End Cap is designed for use with 6 inch pipes. Constructed from ductile iron with a fusion bonded epoxy coating, this end cap is suitable for cast iron, ductile iron, HDPE, and PVC pipes. It features a restraint joint end connection and is NSF and UL certified.

• Installs fast with just one nut to tighten.
• Covers IPS PVC through ductile iron pipe diameters.
• Designed for repeated use or permanent installations.

Product Highlights

The ROMAC Alpha End Cap provides a reliable pipe end seal for various applications. Its durable construction and easy installation make it a practical choice for both temporary and permanent setups.

Product Information

Standard Information

• Brand: ROMAC
• Manufacturer Part Number: 269-070016
• Country of Origin: Domestic

Technical Specifications

• ANSI: ANSI 372, ANSI 61
• ASTM: ASTM A-536 Grade 65-45-12, ASTM D-2000
• Application: Cast Iron Pipe, Ductile Iron Pipe, HDPE Pipe, PVC Pipe
• Coating: Fusion Bonded Epoxy
• Collection: Alpha
• End Connections: Restraint Joint
• Fitting Size 1: 6
• Fitting Sizes: 6 in
• Fitting Type: End Cap
• Material: Ductile Iron, Plastic, Stainless Steel
• NSF: NSF 372, NSF 61
• NSF Certified: Yes
• Origin: Domestic
• UL Listed: Yes
• Finish: Epoxy-Coated
• Length: 7.9 in
• Pipe Size: 6 in
• Pressure Rating: 350 psi
• Series: ALPHA Series
