Product Description

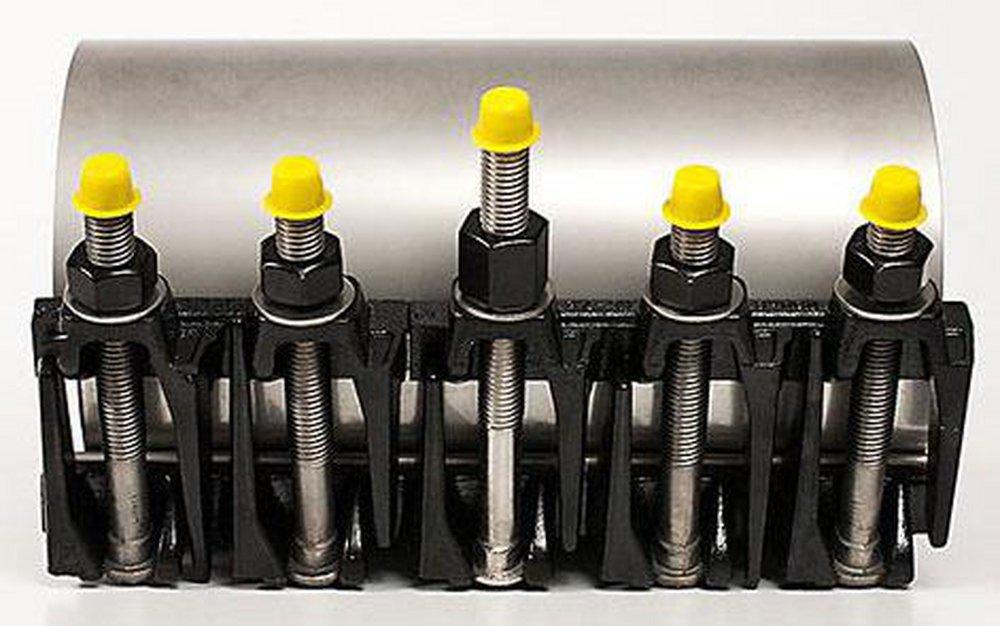

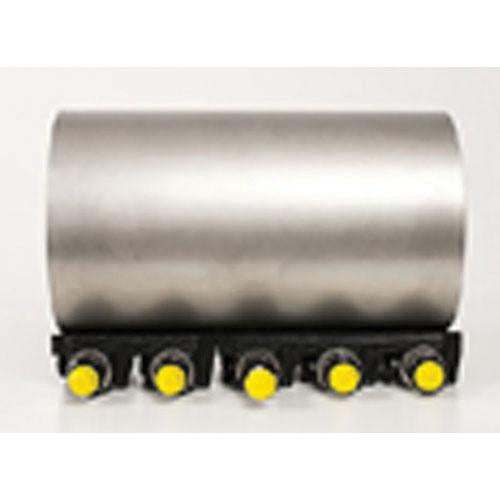

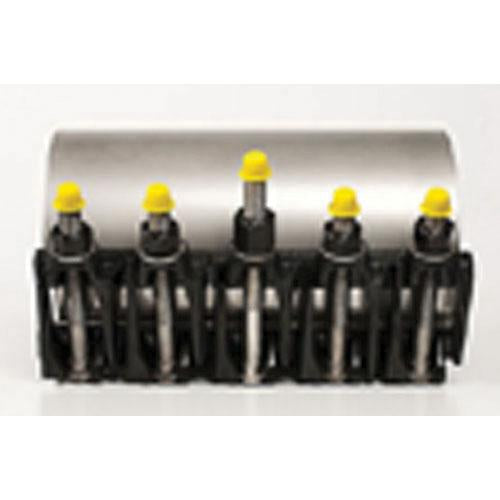

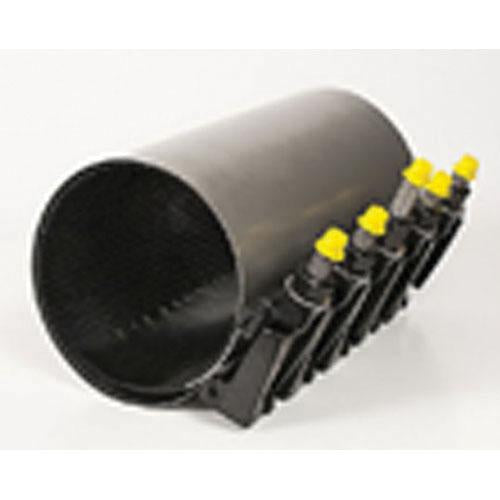

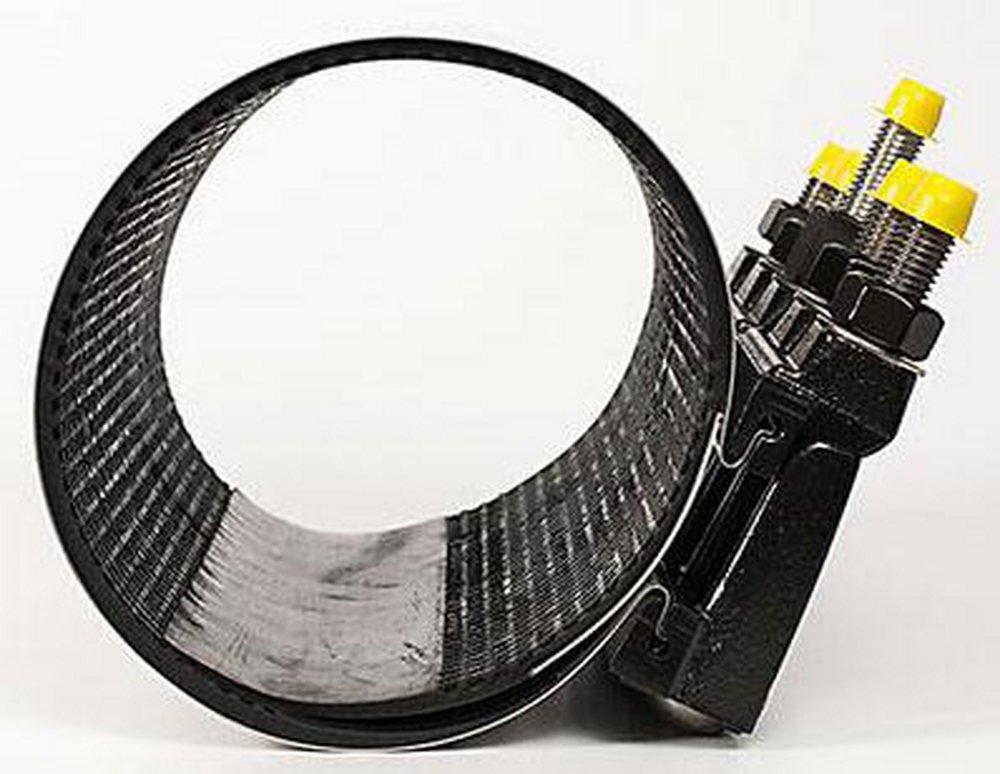

The ROMAC 171-094012000 is a CL1-9.40 x 12^ SS repair clamp. It is compatible with steel, cast iron, asbestos cement, plastic, and other types of pipe. Features high strength low alloy steel trackhead bolts and heavy gauge 304 stainless steel armor bonded to gasket to bridge gap at lug area. Made in USA.
- Compatible with steel, cast iron, asbestos cement, plastic, other types of pipe
- High strength low alloy steel trackhead bolts
- Heavy gauge 304 stainless steel armor bonded to gasket to bridge gap at lug area
Product Highlights
The Romac 171-094012000 repair clamp provides a reliable solution for repairing pipes with its durable construction and versatile compatibility.
Product Information
Standard Information
-
Brand: ROMAC
-
Manufacturer Part Number: 171-094012000
-
Country of Origin: USA
Technical Specifications
-
ASTM: ASTM A-240, ASTM A-536 Grade 65-45-12, ASTM D-2000 MAA 610
-
AWWA: AWWA C-111, AWWA C-230
-
Application: Steel Pipe, Cast Iron Pipe, Asbestos Cement Pipe, Plastic Pipe
-
Coating: E-Coat Epoxy
-
Collection: Style CL1
-
Fits Pipe Size: 8 in
-
Length: 12 INCH
-
Material: Stainless Steel
-
Material Type: 304, SBR
-
NSF Certified: Yes
-
Product Type: Repair Clamp
-
Range (in): 9.00 in - 9.40 in
-
UL Listed: No
-
Additional Information: 304 Stainless Steel Material Construction
-
Body Material: Stainless Steel
-
Bolt Size: 5/8 in Dia x 7 in L
-
Finish: Electro Epoxy-Coated
-
Gasket Material: SBR
-
Material Standard: ASTM A240/A536/D2000 MAA 610, AWWA C111
-
Number of Bolts: 5
-
Pressure Rating: 150 psi
-
Series: CL1 Series
-
Brand: ROMAC
-
Type: Full Circle Repair Clamp
-
Connection: Clamp
-
Pipe Size: 9.00-9.40
-
Thread: Not Applicable
-
UPC: Does not apply
-
Country of Origin: United States
-
Connection Type: Lug
-
Overall Length: 12 inch
-
Nominal Size: 8 INCH
-
For Use With: Steel, Cast Iron, Asbestos Cement, Plastic and Other Types of Pipe
-
Applications: Provides Full Circumferential Repair of Splits and Holes
-
Standards: ASTM A 240, ASTM A 536 Grade 65-45-12, ASTM D 2000 MAA 610
-
INCLUSIONS/FEATURES: REMOVABLE LUG
-
BODY MATERIAL: ASTM A536 DUCTILE IRON
-
CLAMP RANGE: 9 TO 9.4 INCH
-
PROCESS: CAST
-
MODEL: CL1
-
BOLTS: 5 BOLT(S)
