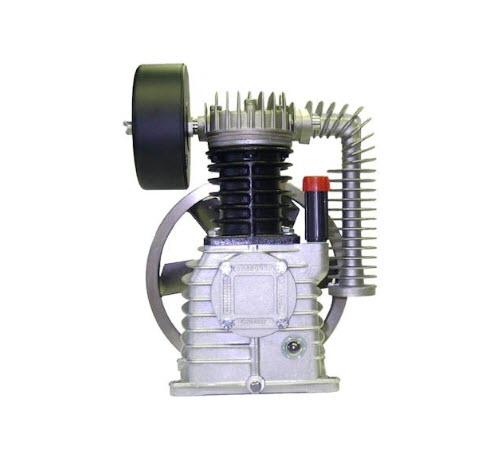

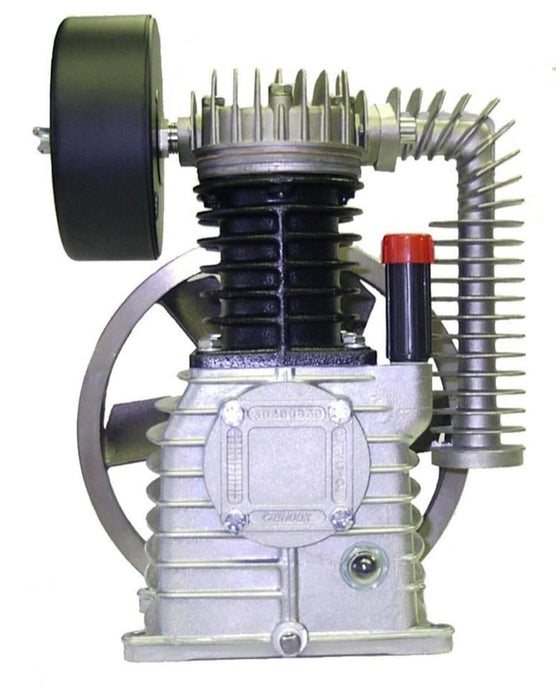

Rolair PMP12K17CH K17 Single-Stage Compressor Pump With Flywheel

Product Description

The Rolair PMP12K17CH single-stage compressor pump with flywheel keeps your ROLAIR compressor running. This replacement compressor pump is a single-stage, high-efficiency compressor with stainless steel valves and cast iron cylinders. It features an oil drain extension for maintenance and a finned aftercooler for efficient operations. It stores 34 ounces of oil and operates at a max 150 PSI with a CFM of up to 10.10.

• Single-stage, high-efficiency compressor
• Long-term durability from stainless steel valves and cast iron cylinder construction
• Oil drain extension for easy maintenance

Product Highlights

The Rolair single-stage compressor pump features stainless steel valves, cast iron cylinders, and a finned aftercooler. It operates at 1000 RPM and has a cast aluminum crankcase.

Product Information

Standard Information

• Brand: ROLAIR
• Manufacturer Part Number: PMP12K17CH
• Country of Origin: Italy

Technical Specifications

• Air Compressor Pump Design: Oil Lubricated
• Capacity: Oil: 34.0 Oz
• Country of Origin: Italy
• Horsepower (hp): 1.5, 2.0 (Electric) & 5.5 (Gas)
• MFG Part # (OEM): PMP12K17CH
• Material: Cast Iron & Cast Aluminum
• Maximum Pressure Rating (psi): 150.0
• Package Contents: K17 Single-Stage Compressor Pump with Flywheel
• Phase: 1
• RPM: 1000.0
• Shut Off PSI: 135.0
• Stroke Length (in): 1.97
• Switch Type: Switchless
• CFM Displaced: 9.91 - 14.86
• CFM Delivered: 6.74 - 10.10 @ 100 PSI
• Lubrication Type: Splash Lubrication
• Pump Oil Capacity: 34 oz.
• Bore: 2.52" x 2
• Stroke: 1.97"
• Flywheel Diameter: 11.02
• Number of Cylinders: 2
• V-Belts: 1-A
