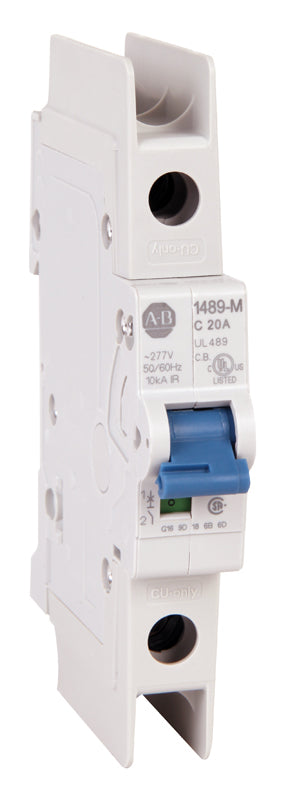

Rockwell Automation 1489-M1C060 Thermal-magnetic Circuit Breaker AC 1 Pole Configuration Replacement 1489-M

Product Description

The Rockwell Automation 1489-M1C060 is a thermal-magnetic circuit breaker with a single pole configuration. It is suitable for AC circuits and designed for effective load protection. This model features a trip curve type C, accommodating both UL/CSA and IEC/EN voltage requirements. It operates at a maximum voltage of two hundred seventy-seven volts AC and forty-eight volts DC. Additional specifications include a compact design and a current rating optimized for various applications.

• Designed for AC, 1 pole configuration
• Trip curve C for controlled performance
• Meets UL/CSA and IEC/EN standards

Product Highlights

This circuit breaker provides reliable protection in commercial and industrial settings. It is widely used in control circuits and load protection applications.

Product Information

Standard Information

• Manufacturer: Rockwell Automation
• Part Number: 1489M1C060 AB
• UPC: 885630619552
• Minimum Order Quantity: 1
• Availability: In Stock

Technical Specifications

• Voltage (Max UL/CSA): 277V AC, 48V DC
• Voltage (Max IEC/EN): 230V AC
• Configuration: 1 Pole
• Current Rating: 6A
• Trip Curve: C
