Robertshaw 760-310 Angled Insulated Boot Assembly

Product Description

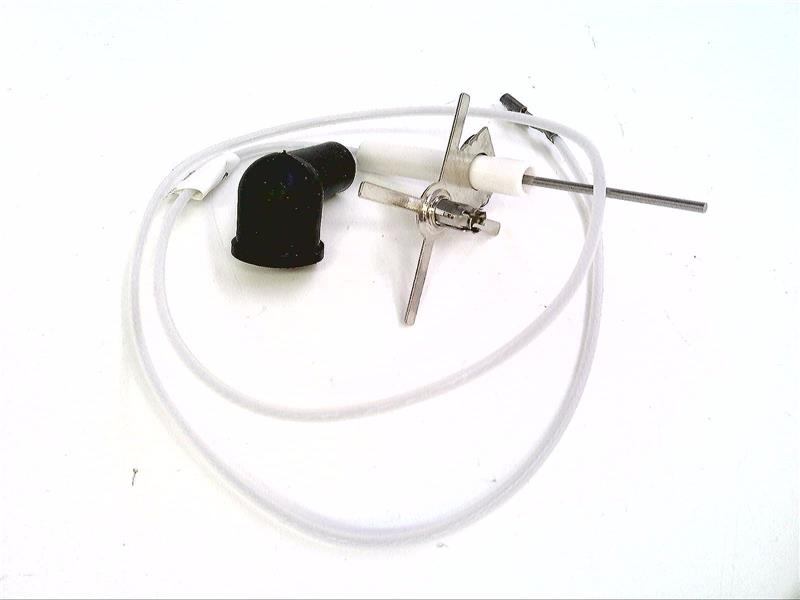

The ROBERTSHAW 760-310 is an angled insulated boot assembly designed to protect and insulate electrode connections in combustion sensing and ignition systems. This component provides electrical insulation at the electrode terminal, preventing arcing and signal interference that can cause nuisance lockouts or unreliable flame detection. Installed on the electrode lead at the point where it connects to the sensing or ignition electrode, the 760-310 maintains a secure, insulated junction in high-temperature burner environments. HVAC technicians and burner service professionals install this part during electrode replacement or lead maintenance on gas-fired equipment.

This angled boot assembly is suited for use in gas burner systems where electrode leads require insulation at the terminal connection point. The angled geometry allows the boot to route leads cleanly around tight clearances common in residential and light commercial gas heating equipment. It is a direct-fit accessory component used during routine electrode maintenance or full electrode assembly service.

Key Features

• Angled design accommodates lead routing in confined burner compartments
• Insulated construction isolates electrode terminal from grounded surfaces
• Reduces risk of arcing, cross-fire, and false flame-signal faults
• Lightweight at approximately 0.15 pounds for easy handling during service
• Compatible with standard electrode lead assemblies used in gas combustion systems

Compatibility

Designed as an OEM-style replacement electrode boot for gas burner and combustion sensing electrode assemblies. No specific compatible model numbers were provided in the product data.

Installation Notes

Installation is performed by qualified HVAC or burner service technicians. Shut off all gas supply and disconnect electrical power to the appliance before servicing any electrode components. Seat the boot fully over the electrode terminal and ensure no conductive surfaces are exposed at the connection point. Follow IFGC and equipment manufacturer guidelines when servicing ignition and flame-sensing components.

Technical Specifications

• Component Type: Angled Insulated Boot Assembly
• Application Category: Sensors and Switches, Electrode Components
• Weight: 0.15 pounds

Standard Information

• Brand: ROBERTSHAW
• Manufacturer Part Number: 760-310
