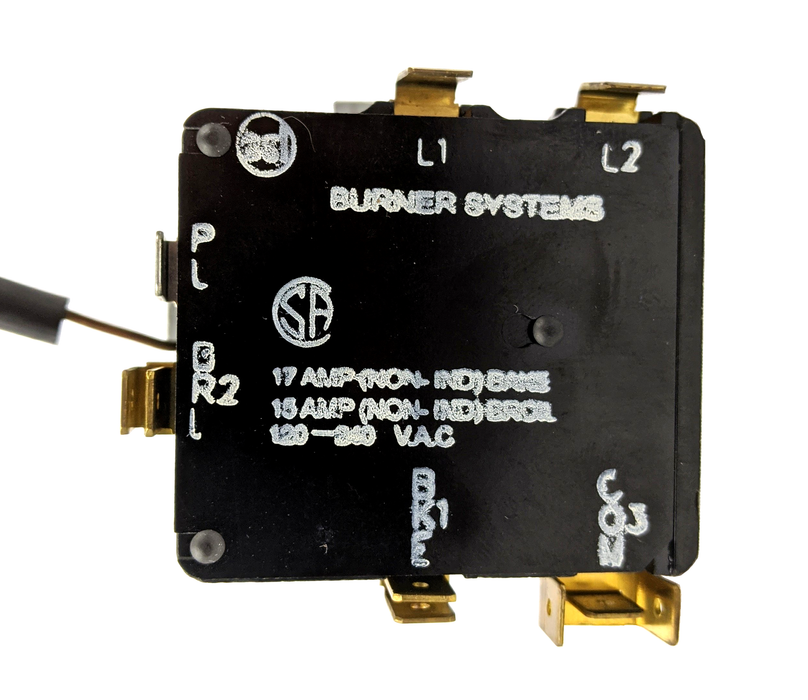

ROBERTSHAW 5435-261 Electric Range Thermostat

Product Description

The ROBERTSHAW 5435-261 is an electric range thermostat suitable for various appliance applications. This device implements automatic preheat and variable broil functions, providing flexibility in cooking temperatures. The thermostat utilizes a DPST (double pole, single throw) switch design, featuring six terminals for easy wiring. It meets safety standards as evidenced by its UL Listing and CSA Certification.

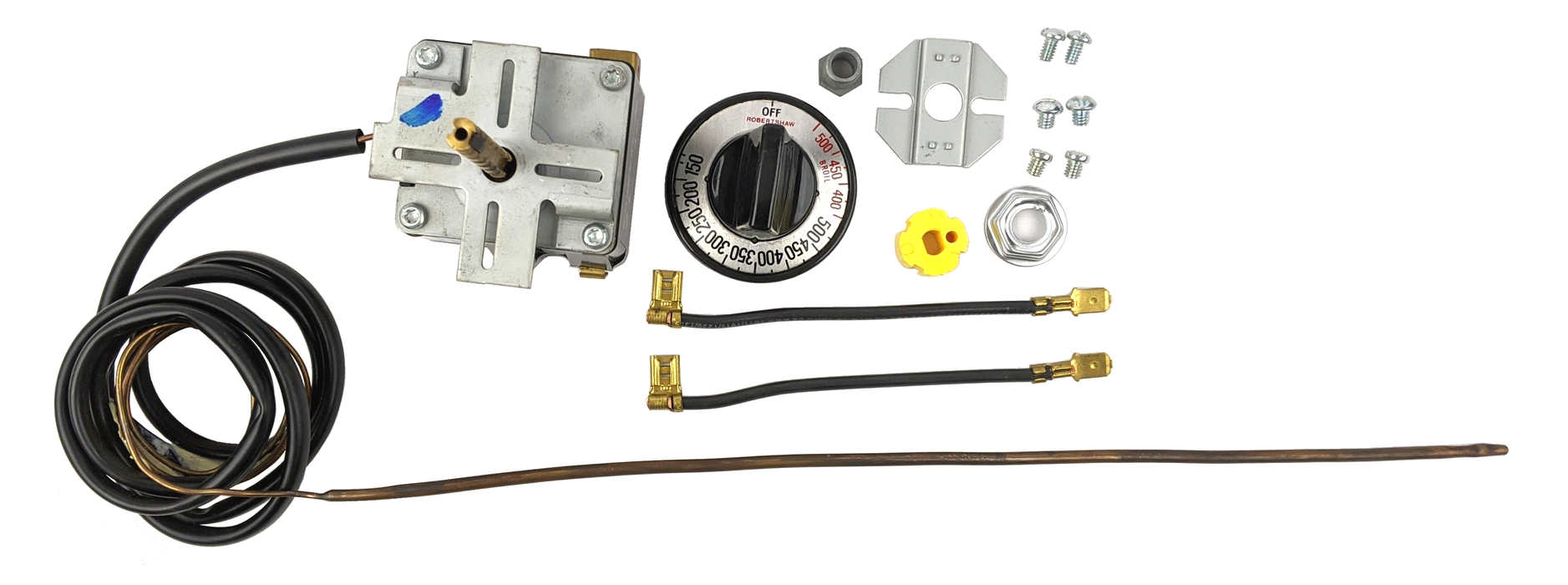

• Includes a knob replacement kit.
• Features automatic preheat and variable broil.
• Equipped with a pilot light for operational visibility.

Product Highlights

This thermostat is ideal for electric ranges needing precise temperature control. The automatic preheat feature enhances cooking efficiency, making it suitable for both residential and commercial kitchens.

Product Information

Standard Information

• Brand: ROBERTSHAW
• MPN: 5435-261

Technical Specifications

• Switch Type: DPST (double pole, single throw)
• Electrical Rating: 240VAC, 17 Amps, 6 Terminals
• Pilot Light: Yes
• Capillary Length: 60 ±2 inches
• Sensing Bulb Dimensions: 0.13 inches Diameter x 12 ±1 inches Long
• Certifications: U.L. Listed and C.S.A. Certified
