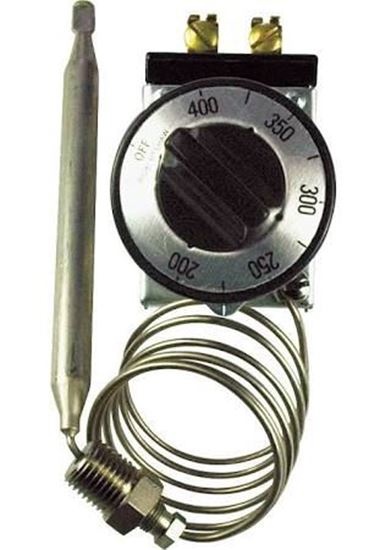

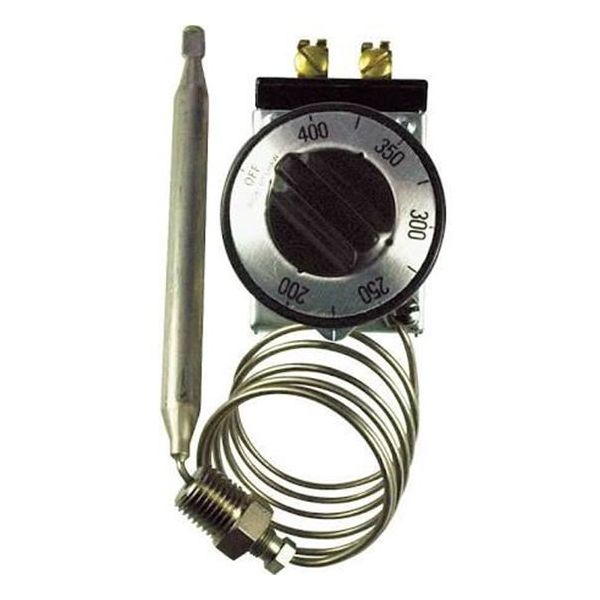

Robertshaw 5300-147 Electric Thermostat

Product Description

The Robertshaw 5300-147 is an electric thermostat suitable for direct replacement in 5300 series applications. It features a snap-acting, single pole single throw (SPST) configuration for reliable operation. The thermostat includes silver contacts and heavy-duty terminals, designed for durability. The temperature range spans from two hundred degrees Fahrenheit to four hundred degrees Fahrenheit, with an ambient temperature rating of up to two hundred degrees Fahrenheit (ninety-three degrees Celsius).

This thermostat incorporates an open-high capillary design that enhances temperature sensing capabilities. The bulb specifications are three-sixteenths inches by six and seven-sixteenths inches, made from nickel, while the capillary length measures fourteen inches. This model is designed with the stem flat in the down position and features a four-way dial type.

• Features a single pole single throw (SPST) snap-acting design.
• Designed for temperature control within a range of two hundred degrees Fahrenheit to four hundred degrees Fahrenheit.
• Includes a fourteen-inch capillary for remote temperature sensing.

Product Highlights

Reliable electric thermostat designed for HVAC applications with precise temperature control.

Product Information

Standard Information

• Manufacturer Name: Robertshaw
• Product Number: 5300-147

Technical Specifications

• OEM Part Number: 5300-147
• Series Application: 5300 Series Electric Thermostats - Direct Replacements
• Temperature Range: 200°F to 400°F
• Stem Length: 13/16 inches
• Mounting Type: #5, 1-1/4 inches
• Factory Part Number: SP-154
• Capillary Length: 14 inches
• Bulb Size: 3/16 inches x 6-7/16 inches Nickel
