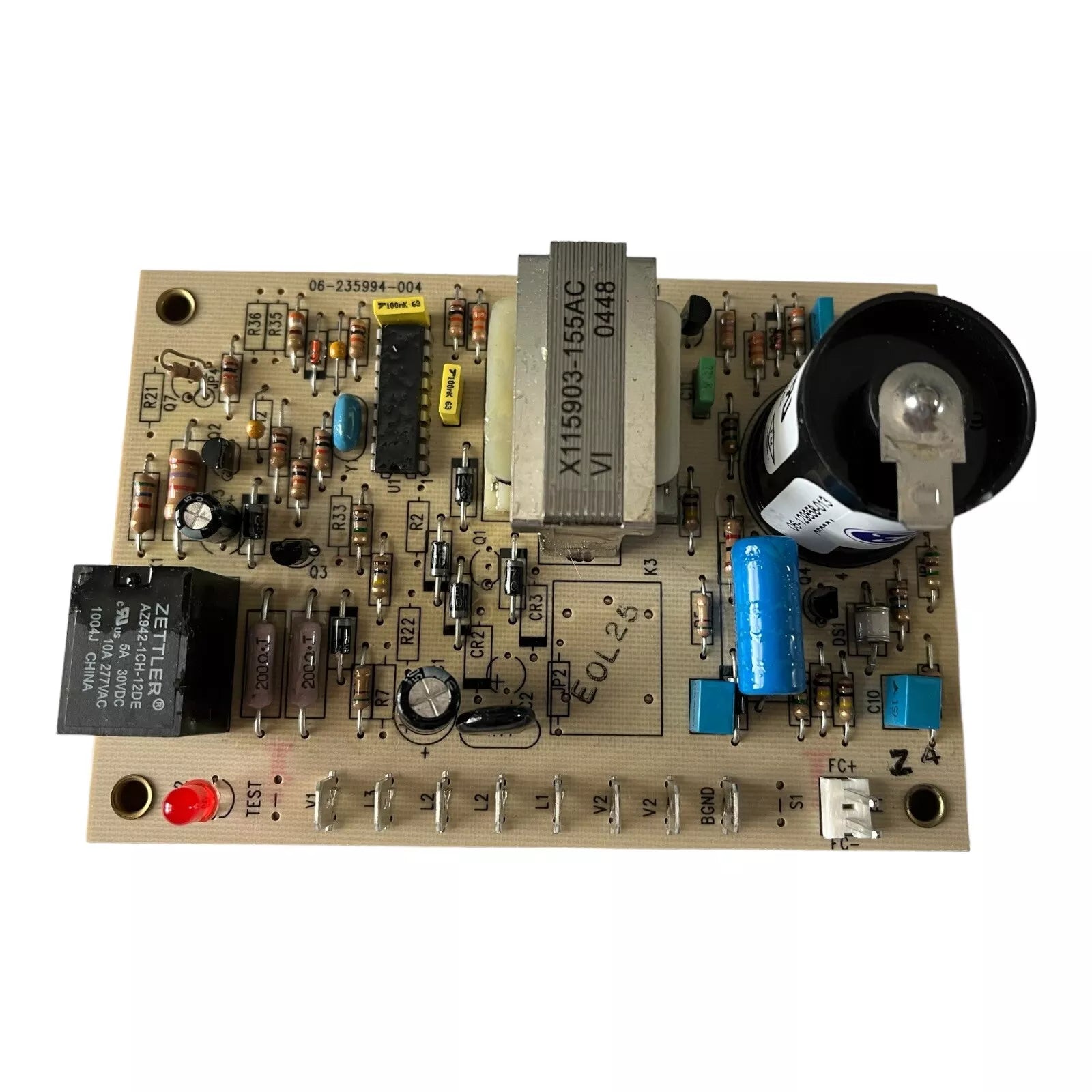

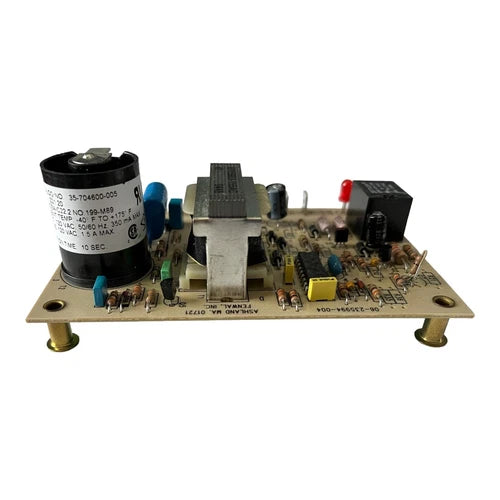

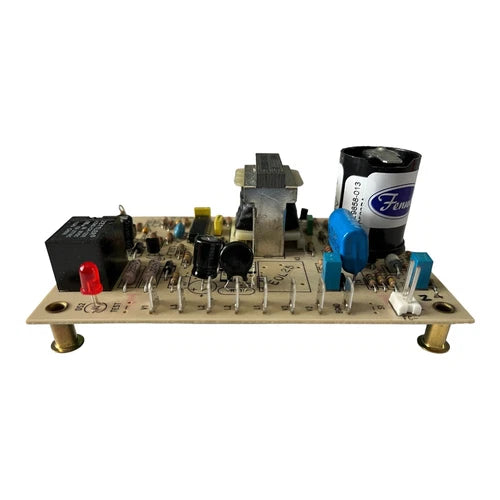

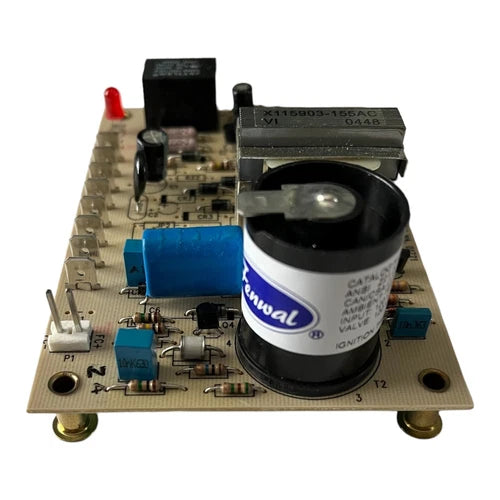

Robertshaw 35-704600-005 Ignition Control Board

Product Description

The Robertshaw 35-704600-005 is an ignition control board suitable for 35-65 Series, 24 Volt Hot Surface Ignition 120/240 applications. It contains quick connect terminals for straightforward electrical connections. This open board construction accommodates the ignition control, operating on a control voltage of 102-138V AC at a frequency of 50/60 Hz. The electrical rating stands at 120V AC and 350 mA. The board supports a gas valve rating of 1.5 Amps at 120V AC. It performs one ignition attempt prior to lockout, maintaining a trial for ignition period of 10 seconds. The unit does not feature an auto restart mechanism.

• Quick connect terminals for easy setup.
• Compatible with 35-65 Series, 24 Volt Hot Surface Ignition 120/240 applications.
• Helps reduce inventory for service trucks.

Product Highlights

This ignition control board is designed for reliability and efficiency in ignition management.

Product Information

Standard Information

• Brand: Robertshaw
• Type: Ignition Control Board

Technical Specifications

• Weight: 0 lbs
• Series Application: 35-65 Series, 24 Volt Hot Surface Ignition 120/240
• Flame Sensor Method: Local
• Auto Restart: No
• Electrical Rating: 120V AC 350 mA
• Ignition Attempts Before Lockout: 1
• Trial for Ignition: 10 seconds
• Connection Type: Quick Connect Terminals
• Gas Valve Rating: 1.5 Amps @ 120V AC
• Control Voltage: 102-138V AC 50/60 Hz
