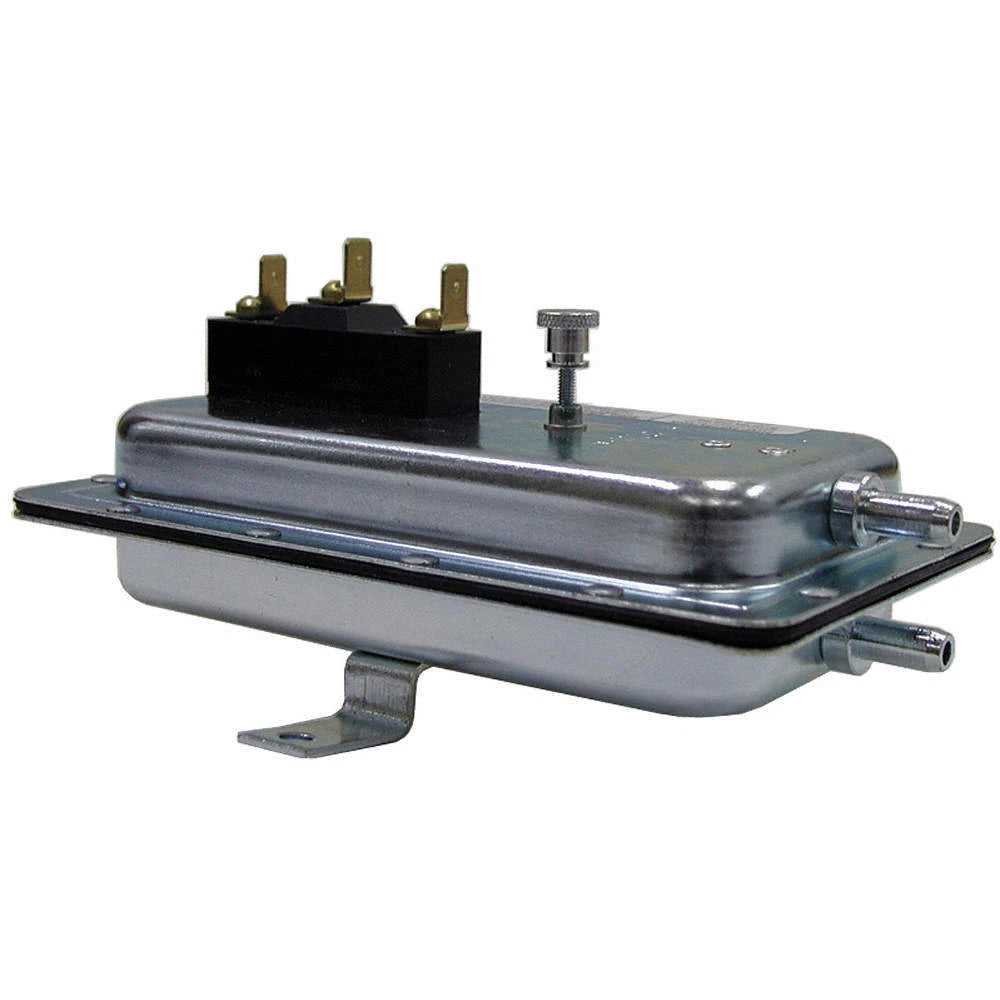

Robertshaw 2374-502 Air Pressure Switch SPDT

Product Description

The Robertshaw 2374-502 is a versatile adjustable air pressure switch. This device is designed for duct pressure applications and features a Single Pole Double Throw (SPDT) configuration. It can respond to positive, negative, or differential pressure, and the control set point can be adjusted in the field. This switch is effective in a temperature range of -40 degrees Fahrenheit to 190 degrees Fahrenheit (-40 degrees Celsius to 88 degrees Celsius).

• Field adjustable control set point for flexible usage
• Compatible with air sample line connectors for 1/8, 1/4, or 3/8 inch tubing
• UL and CSA certified for safe operation

Product Highlights

This switch offers reliability and adaptability in various HVAC applications.

Product Information

Standard Information

• Brand: Robertshaw
• Type: Duct Pressure Switch

Technical Specifications

• MPN: 2374-502
• Model: 2374-502
• Series Application: Adjustable Air Sensing Switch
• Switch: SPDT
• Maximum Pressure: 0.5 PSI
• Temperature Range: -40 degrees Fahrenheit to 190 degrees Fahrenheit (-40 degrees Celsius to 88 degrees Celsius)
• Electrical Rating: 5 Amps at 120-277V AC, 5 Amps at 28V DC, 1 Amp Pilot Duty 120VA
• Manufacturer: Robertshaw Controls Company
