ROBERTSHAW 200-402 Thermostat

Product Description

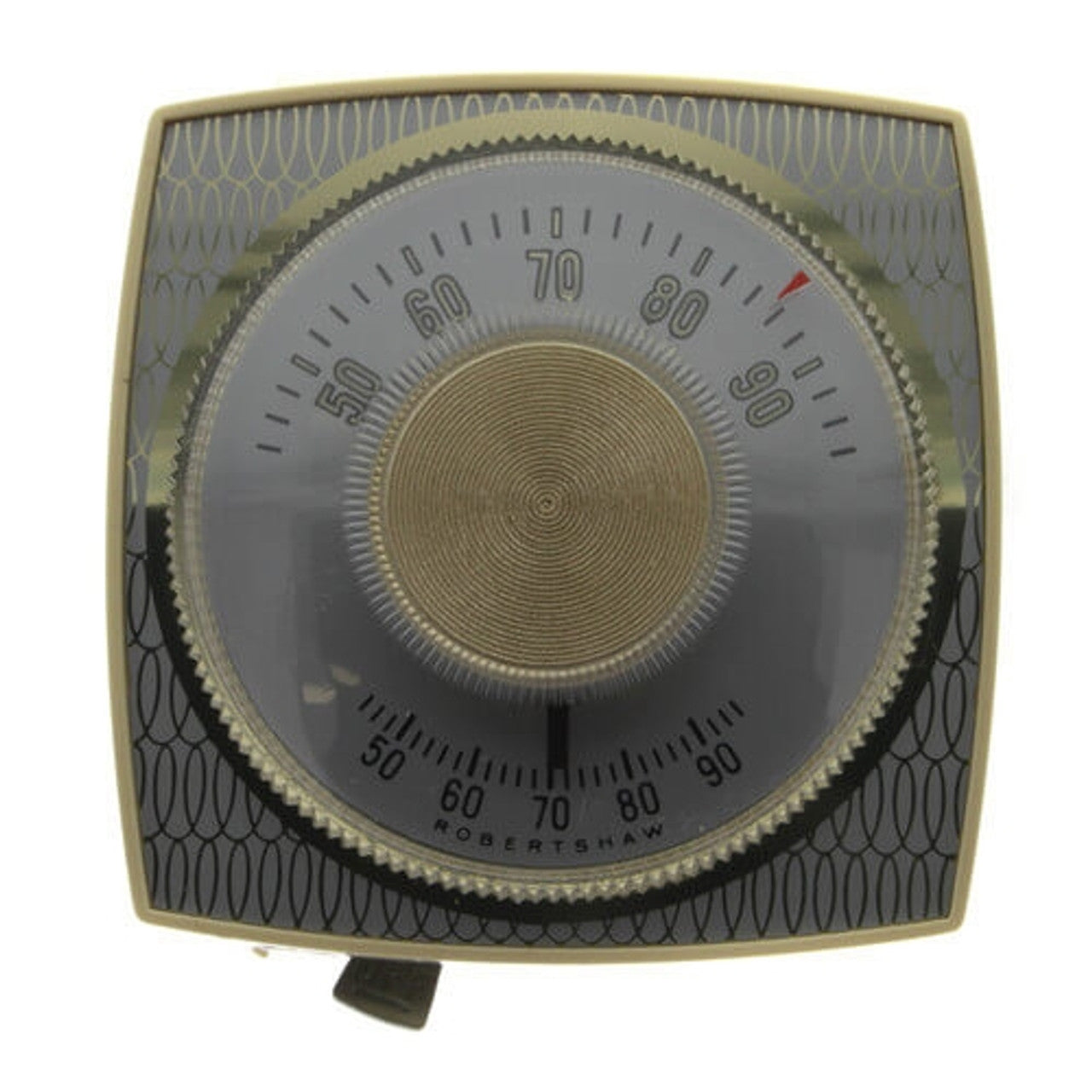

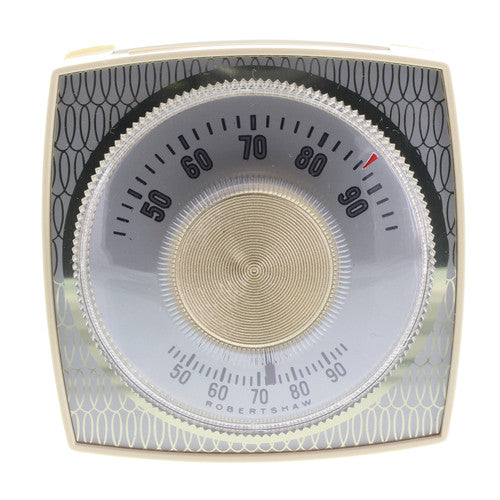

The ROBERTSHAW 200-402 Thermostat is suitable for temperature control tasks. It operates with a maximum low voltage of thirty VAC and a current of one amp. This thermostat works with millivolt systems rated between two hundred fifty and seven hundred fifty. The sensing range is from forty-four degrees to ninety-six degrees Fahrenheit. Users can set temperatures from forty-eight degrees to eighty-six degrees Fahrenheit using the dial. The thermostat measures two and thirteen-sixteenths inches in a rounded square shape and has a depth of one and five-sixteenths inches. A two-wire connection is utilized, along with a Single Pole Single Throw (SPST) switch that includes a positive-off lever for circuit control.

• Electrical rating: low voltage of thirty VAC maximum and one amp maximum.
• Temperature sensing range of forty-four degrees to ninety-six degrees Fahrenheit.
• Includes a SPST switch with a positive-off lever for easy operation.

Product Highlights

The ROBERTSHAW 200-402 Thermostat is ideal for maintaining temperature in various systems.

Product Information

Standard Information

• Operation Voltage: Low voltage, 30 VAC max.
• Maximum Current: 1.0 amp max.

Technical Specifications

• Millivolt Rating: 250-750.
• Temperature Range: 44 degrees to 96 degrees Fahrenheit.
• Dimensions: 2-13/16 inches rounded square, 1-5/16 inches deep.
• Application: 2 wires.
• Switch Action: SPST with a positive-off lever.
• Dial Temperature Range: 48 degrees to 86 degrees Fahrenheit.
