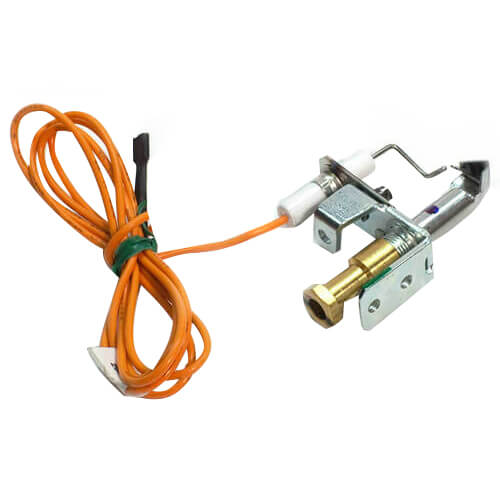

ROBERTSHAW 1830-722 Pilot Electrode Assembly With Sensor 5SL-6

Product Description

The ROBERTSHAW 1830-722 is a pilot electrode assembly designed for use in OEM-style pilot ignition systems. Each unit is equipped with a sensor for reliability and accuracy in ignition processes. It features a natural gas orifice pre-installed, along with a separate LP gas orifice, which allows for flexibility in fuel type. The electrode is fixed at a spark gap of one eighth inch, ensuring consistent ignition.

• Compatible with OEM-style pilot ignition systems.
• Includes LP gas orifice for versatile applications.
• Permanently riveted electrode for enhanced durability.

Product Highlights

This pilot assembly is ideal for replacing existing pilot systems or for retrofitting applications requiring precise replacements. The design minimizes maintenance with non-linting characteristics, eliminating the need for air shutters or additional adjustments.

Product Information

Standard Information

• Brand: ROBERTSHAW
• MPN: 1830-722

Technical Specifications

• Item Number: 1830-722
• Dimensions: Three point eight inches length, Three point six inches width, Two point nine five inches height
• Weight: Zero point twenty four pounds
• Flame Pattern: Ninety degrees left
• Mounting Bracket: Six
• Shipping Weight: Zero point twenty four pounds
