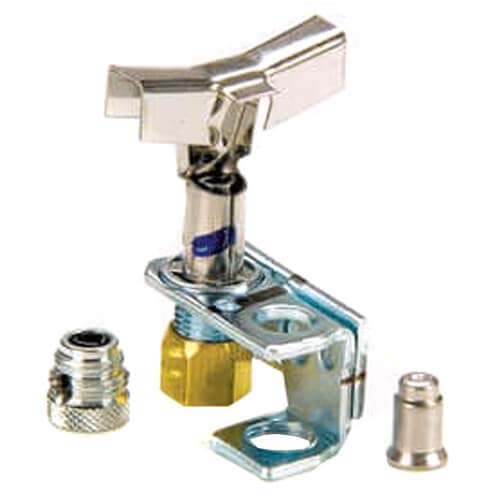

Robertshaw 1830-709 Pilot Electrode Assembly w/ 180 Flame (1)

Product Description

The Robertshaw 1830-709 Pilot Electrode Assembly is designed to work with O.E.M. pilot ignition systems. This assembly features a fixed spark gap of 1/8 inch and a natural gas orifice. The electrode is riveted to the pilot frame, making it sturdy and reliable. The unit is suitable for replacing existing pilot assemblies or retrofitting applications that require an exact match. Each kit includes a separate LP gas orifice and is designed for easy installation.

• Flame pattern: 180 degree
• Mounting bracket size: 6 inches
• Hood type: 2

Product Highlights

This assembly integrates the best features of both incinerator and target type pilots. It does not require air shutters or extra shields, which simplifies the setup process.

Product Information

Standard Information

• Manufacturer: Robertshaw
• Product Type: Pilot Electrode Assembly

Technical Specifications

• Flame Pattern: 180 Degree
• Mounting Bracket: 6 inches
• Hood Type: 2
• Pilot Tubing Size: 1/4 inch
• Gas Orifices: Natural gas and LP gas
• Application: Replacement or retrofitting of pilot assemblies
