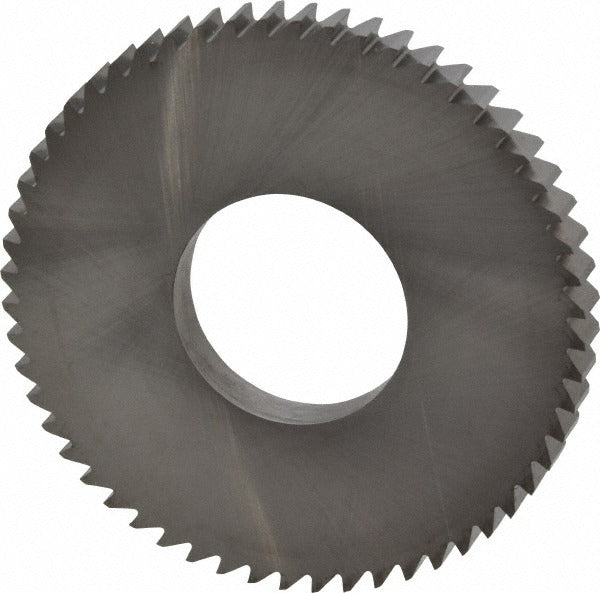

Robbjack C25-2500-32-56 Slitting Slotting Saw 56T

Product Description

The ROBBJACK C25-2500-32-56 is a solid carbide slitting and slotting saw designed for precision cutting in metalworking and machining operations. Measuring 2.5 inches in diameter with a 0.25-inch blade thickness and a 1-inch arbor hole, this saw mounts directly to standard arbor setups on milling machines and machining centers. The 56-tooth straight configuration with a 5-degree rake angle and concave grinding delivers clean, accurate slots and cuts with minimal burr. Right-hand cutting direction and a bright uncoated finish make this tool well suited for shops running ferrous and non-ferrous metals at controlled speeds.

This saw is intended for use in milling operations where tight-tolerance slotting, slitting, or parting cuts are required. Solid carbide construction makes it appropriate for demanding material applications including cast iron, stainless steel, alloy steel, super alloys, and titanium. It is typically installed and operated by machinists and tool-and-die professionals on vertical or horizontal milling equipment. The arbor-mount connection type is standard for this class of saw.

Key Features

• Solid carbide construction for rigidity and wear resistance in hard and abrasive materials
• 56 straight teeth with a 5-degree rake angle for controlled chip formation
• Concave ground blade profile reduces side rubbing and improves clearance in the cut
• Right-hand cutting direction compatible with standard milling machine spindle rotation
• Bright uncoated finish suitable for use with cutting fluids across a wide range of metals
• 1-inch arbor hole fits standard slitting saw arbors used in most milling setups

Compatibility

Designed for use on milling machines and machining centers accepting a 1-inch arbor hole slitting saw. Rated for material applications including cast iron, stainless steel, steel, super alloys, and titanium.

Installation Notes

Installation should be performed by a qualified machinist with the machine powered down and locked out before mounting or removing the saw. Ensure the arbor, spacers, and draw bar are properly torqued according to the machine manufacturer specifications before operation. Use appropriate cutting fluid for the workpiece material to extend tool life and maintain surface finish quality. Inspect the blade for chipping or cracking before each use and never exceed the recommended surface footage for the material being cut.
