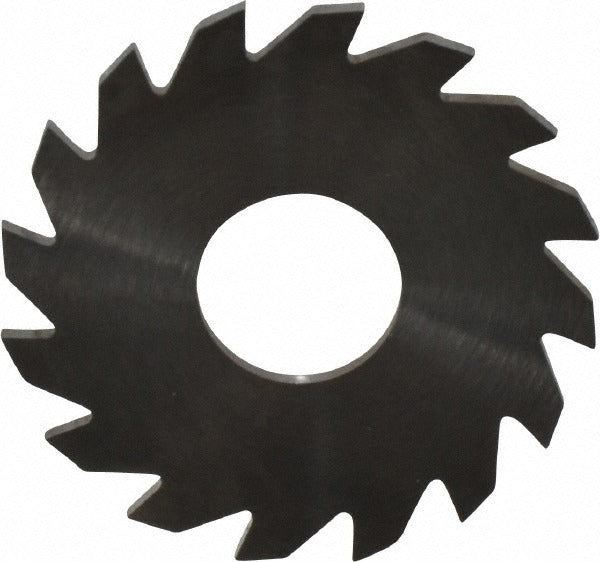

Robbjack C15-0625-16-16 Slitting Slotting Saw Solid Carbide

Product Description

The ROBBJACK C15-0625-16-16 is a solid carbide slitting and slotting saw designed for precision cutting applications in metalworking and fabrication environments. It measures 1.5 inches in diameter with a blade thickness of 0.0625 inches (1/16 inch) and carries 16 straight teeth. The bright, uncoated finish preserves dimensional accuracy and suits applications where coating buildup or adhesion is a concern. The concave-ground tooth geometry helps reduce friction and improves chip clearance during slotting cuts. This saw is installed on an arbor-mount spindle and is typically used by machinists and tool-and-die professionals working with light metals, composites, and plastics.

This slitting saw is suited for cutting and slotting operations on aluminum, brass, copper, magnesium, composites, and plastics. The right-hand cutting direction and straight tooth configuration make it appropriate for conventional milling setups on manual mills and CNC machining centers. At 1.5 inches in diameter and 1/16 inch thickness, it fits applications requiring narrow kerfs and tight slot tolerances, including groove cutting, part separation, and thin-section slotting in production or job-shop environments.

Key Features

• Solid carbide construction for rigidity and wear resistance in non-ferrous and composite materials
• 1.5 inch blade diameter with 0.0625 inch (1/16 inch) blade thickness for narrow-kerf slotting
• 16 straight teeth for consistent chip formation in light metals and plastics
• Concave-ground blade face reduces friction and aids chip evacuation
• Bright, uncoated finish - no coating interference on close-tolerance cuts
• Right-hand cutting direction for standard arbor-mount spindle setups

Compatibility

Designed for arbor-mount slitting saw applications in milling operations involving aluminum, brass, copper, magnesium, composites, and plastics.

Installation Notes

Installation is performed by qualified machinists using an appropriately sized saw arbor. Ensure the machine spindle is fully powered down and locked out before mounting or removing the saw blade. Verify arbor flange seating and fastener torque per the arbor manufacturer specifications before initiating a cut. Inspect the blade for chips or cracks before each use; solid carbide tooling is brittle and should not be dropped or subjected to side-loading beyond the intended depth of cut.
