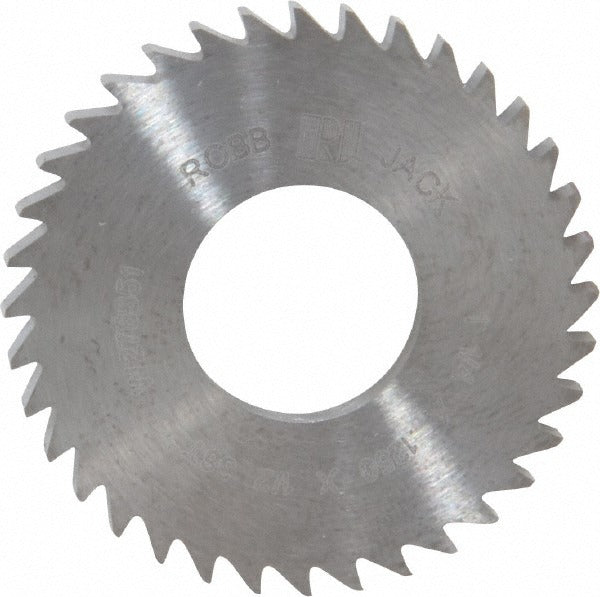

Robbjack C12-1250-16-36 Slitting Slotting Saw

Product Description

The ROBBJACK C12-1250-16-36 is a solid carbide slitting and slotting saw designed for precision cutting operations in demanding metalworking applications. Measuring 1-1/4 inches in diameter and 1/8 inch thick, this saw features 36 straight teeth with a 5-degree rake angle and a concave ground profile for improved chip evacuation and cut accuracy. The bright uncoated finish suits applications where coating interactions with workpiece materials are a concern. Arbor-mount connection makes it compatible with standard milling setups. This tool is intended for use by machinists and toolroom professionals operating CNC or manual milling equipment.

The C12-1250-16-36 is suited for slitting, slotting, and undercutting operations on a range of ferrous and non-ferrous materials. Right-hand cutting direction makes it compatible with conventional milling setups. Verified material applications include cast iron, stainless steel, steel, super alloy, and titanium. The saw fits typical arbor-style toolholding systems used in vertical and horizontal milling machines. Its compact diameter and narrow blade thickness make it appropriate for close-tolerance slotting work in production and toolroom environments.

Key Features

• Solid carbide construction for rigidity and extended tool life in hard and abrasive materials
• 36 straight teeth with a 5-degree rake angle for consistent chip load per tooth
• Concave ground blade profile reduces friction and improves chip clearance
• Bright uncoated finish suitable for use across cast iron, stainless steel, steel, super alloy, and titanium
• Right-hand cutting direction for use in standard milling orientations
• Arbor connection type compatible with standard milling machine toolholding

Compatibility

Designed for arbor-mount milling setups. Verified material applications include cast iron, stainless steel, steel, super alloy, and titanium. Part of the ROBBJACK Series C slitting and slotting saw line.

Installation Notes

Installation should be performed by a qualified machinist. Power down and lock out the milling machine before mounting or removing the saw from the arbor. Ensure the arbor, spacers, and draw bolt are clean and properly torqued per the machine manufacturer specifications before operation. Inspect the blade for chips or cracks before each use and do not operate a damaged tool.
