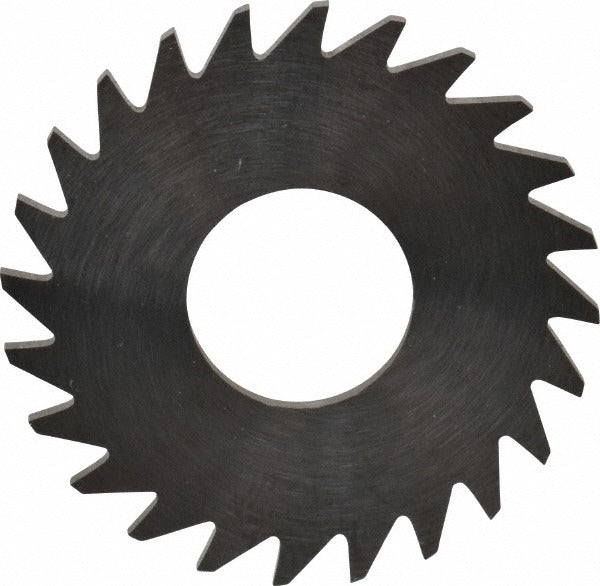

Robbjack C10-0468-12-24 Slitting Saw 1 in Solid Carbide

Product Description

The ROBBJACK C10-0468-12-24 is a solid carbide slitting and slotting saw designed for precision material removal in metalworking applications. The blade measures 1 inch in diameter and 0.0468 inches thick, with 24 straight teeth and a 5-degree rake angle. The concave-ground profile reduces side contact and helps maintain accurate slot width throughout the cut. Bright and uncoated, this saw is suited for applications where coating buildup is a concern or where post-coat treatment is handled separately. Arbor-mount connection makes it compatible with standard slitting saw arbors used on milling machines and machining centers.

This saw is intended for use on milling machines and CNC machining centers where tight-tolerance slotting, slitting, and parting operations are required. It is rated for cutting cast iron, stainless steel, carbon steel, super alloys, and titanium. The right-hand cutting direction suits standard spindle rotation on vertical and horizontal mills. Machinists and tool-and-die professionals working in production and job-shop environments will find this blade suited for narrow slot work and thin-section parting cuts across a range of ferrous and high-strength materials.

Key Features

• Solid carbide construction for rigidity and wear resistance in hard and abrasive materials
• 0.0468 inch blade thickness allows narrow slotting and precise parting cuts
• 24 straight teeth with 5-degree rake angle for controlled chip formation
• Concave-ground sides reduce blade-to-workpiece contact and side friction
• Bright uncoated finish maintains consistent dimensional tolerances out of the box
• Right-hand cut, arbor-mount design compatible with standard slitting saw arbors

Compatibility

Designed for use with standard arbor-mount slitting saw holders on vertical mills, horizontal mills, and CNC machining centers. Rated for cutting cast iron, stainless steel, steel, super alloys, and titanium.

Installation Notes

Installation should be performed by a qualified machinist following the machine tool manufacturer's arbor mounting specifications. Ensure the spindle is fully stopped and the machine is powered down before mounting or removing the saw. Use the correct arbor size and secure all spacers and collars to the manufacturer's specified torque before operation. Inspect the blade for chips or cracks before each use and do not exceed the recommended surface footage for the material being cut.
