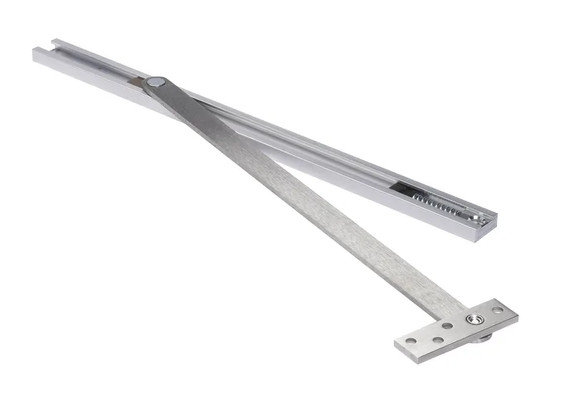

Rixson 6-536 630 Low Profile Concealed Mount Stop

Product Description

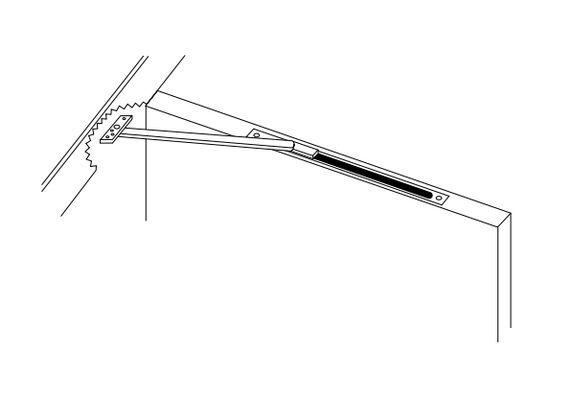

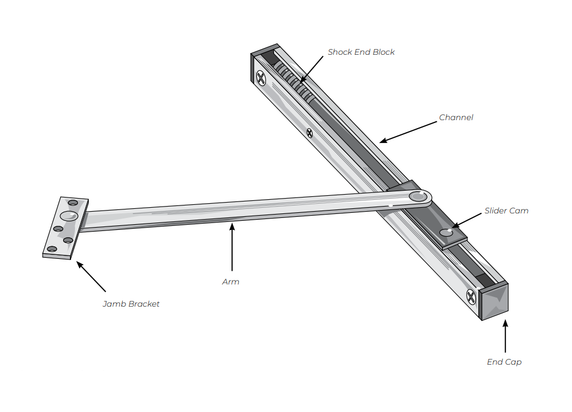

The RIXSON 6-536 630 is a concealed low profile stop designed for interior or exterior doors, which may be single or double acting. Recommended for high traffic, heavy abuse installations, it features a low profile concealed channel designed for installation in aluminum storefront doors. It is non-handed.

• Heavy shock absorber spring provides 5-7° compression before dead stop
• Complete screw kit allows for installation in wood or metal door and frame
• 110° maximum opening

Product Highlights

The RIXSON 6-536 630 is ideal for high-traffic environments. Its concealed design and durable construction ensure long-lasting performance.

Product Information

Standard Information

• Brand: RIXSON
• Manufacturer Part Number: 6-536 630

Technical Specifications

• Maximum Opening: 110°
• Minimum Door Thickness: 1-3/4"
• Channel Width: 1-1/4"
• Channel Depth: 1/2"
• Compliance: ANSI/BHMA A156.8, Grade 1 Certified, UL listed for fire door assemblies
• Base Material: Stainless Steel
• Fire Rated: 3 Hours {A}
• Finish: 630/US32D
• Series: Rixson Accessories
• Color: Satin Stainless Steel
• Color Code: 630/US32D
• Package Qty: 1
• Special Marks: Fire rated 3 Hours {A}
• Finish Description: Satin Stainless Steel
• Grade: ANSI/BHMA Grade 1
• Function: Stop Only
• Product Type: Door Closer/Holder/Stop
• ProductType: Manual
• Mounting Type: Concealed
• For Use With: Interior or Exterior Doors
• Application: Installation in Aluminum Storefront Doors; Interior or Exterior Doors
• Mount: Concealed
• ADA Compliant: No
• Finish Family: Stainless Steel
• Standards: ANSI/BHMA A156.8 Grade 1; UL Listed
• For Door Thickness: 1-3/4 Inch
• Function Family: Overhead Door Stop
• Jamb Bracket Width: 1/4 Inch
• Hold Open-Stop Range: 110°
• Jamb Bracket Height: 1 Inch
• Jamb Bracket Length: 3-1/2 Inch
• Manufacturer Parent: Assa Abloy
• Sub-Series: 6-536-630
• Alternate Part Number-1: 246534
