Rixson 195 626 Lh Pivot Set

Product Description

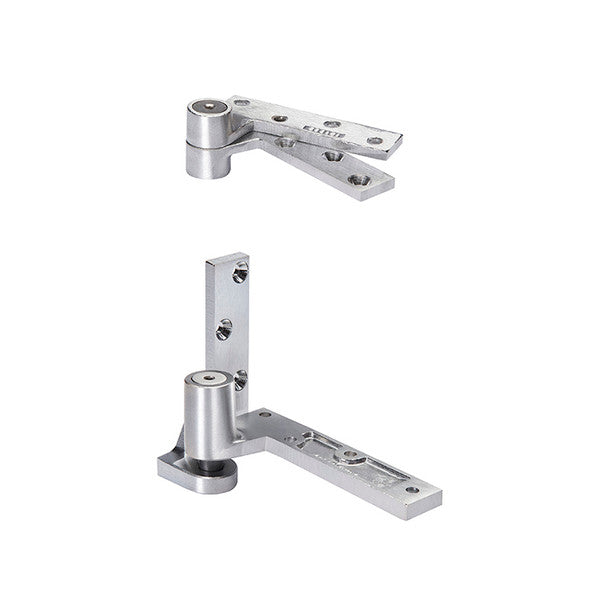

The Rixson 195 626 LH pivot set is an offset-hung, jamb-mounted pivot set designed for interior or exterior doors. It is left-handed and includes the top and bottom pivots. The pivot set is constructed from brass with a satin chrome finish.

• Designed for interior or exterior doors
• Maximum door weight of 450 lbs
• Features a satin chrome finish

Product Highlights

This Rixson 195 626 LH pivot set is ideal for doors requiring a durable and reliable pivot system. It supports doors up to 450 lbs and offers a 180-degree maximum door swing.

Product Information

Standard Information

• Brand: RIXSON
• Manufacturer Part Number: 195 626 LH
• Country of Origin: US

Technical Specifications

• Material: Brass
• Brand: Rixson
• Finish Type: Satin Chrome
• Mounting Type: Floor Mount
• Unit Count: 1.0 Count
• Item model number: RIX-11726DLH
• Model: 195 626 LH
• MPN: 195 626 LH
• Features: Pivot Hinge, Brass Material, Satin Chrome Finish, 450 lb Load Capacity, With Holes, 4 Holes per Leaf, No Ligature Resistant, 180 Degrees Range of Motion, Orientation Left Hand, 0.25 in Door Leaf Thickness, 0.25 in Frame Leaf Thickness, 1 3/4 in Required Door Thickness, Bronze Bearing Type, Square Corners, Included Hardware, Full Mortise Mounting, Hardened Steel Pin Material, Nonremovable Pin Type, BHMA/ANSI NO: C07172 Standards, Door Leaf Height 4 1/4 in, Door Leaf Width 1 1/16 in
• Item Width: 3.700
• Item Height: 2.300
• Item Depth: 3.700
• Country of Origin: US
• California Prop 65 Warning: N
• Length: 8.400
• Width: 3.700
• Depth: 3.700
• Handed: Left Hand
• Finish: Satin Chromium Plated
• Maximum Door Weight: 450 lbs
• Maximum Door Width: 4 Ft.0 In.
• Includes: 180 Top Pivot
• Door Swing: 180 degree maximum
