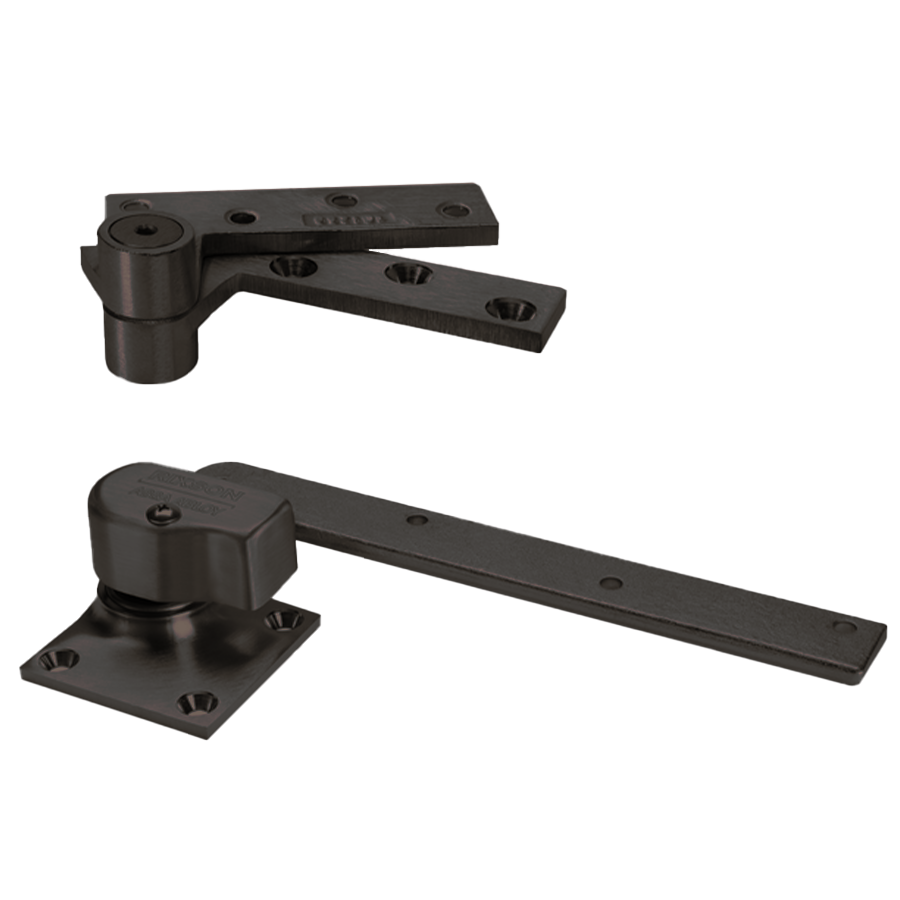

Rixson 147 613E RH Pivot Set 3/4 inches Offset

Product Description

The RIXSON 147 613E RH is a 3/4" offset hung pivot set designed for interior or exterior doors up to 600 lbs. This right-hand pivot set includes a 180-degree top pivot and features a dark oxidized bronze finish. It is suitable for standard-duty applications.

• Standard-Duty Pivot Set
• Bottom Pivot Mounts Directly to Floor
• Doors will Swing 180°

Product Highlights

Right hand, 3/4" offset pivot set for doors up to 600 lbs. Includes 180-degree top pivot.

Product Information

Standard Information

• Brand: RIXSON
• Manufacturer Part Number: 147 613E RH

Technical Specifications

• Alternate Part Number-1: 181527
• Handing: Right Hand
• Application: Exterior or Interior Doors
• Color Code: 613E/US10BE
• Function: Pivot Set
• Offset: 3/4 Inch
• Finish Description: Dark Oxidized Satin Bronze
• Finish Family: Dark Bronze
• Included Components: Standard Top Pivot 180
• Product Material: Non-Ferrous Base Material
• Standards: ANSI C07162/C07202
• Maximum Door Load: 600 lbs.
• Function Family: Hinge/Pivot
• Product Type: Hinge/Pivot
• Series: 147 Series Pivot
• Manufacturer Parent: Assa Abloy
• Sub-Series: Rixson-147-RH
