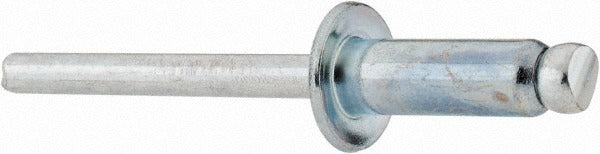

Rivetking SBS88/P100 Blind Rivet Size 88 Dome Head 100 Pack

Product Description

The RIVETKING SBS88/P100 is an open end blind rivet with a dome head, steel body, and steel mandrel, supplied in a 100-piece pack. The body diameter measures 0.25 inches with a length under head of 0.75 inches, making it a standard Size 88 fastener. The grip range spans 0.376 to 0.5 inches, accommodating a range of material stack thicknesses. The mandrel carries a phosphate finish for corrosion resistance during storage and handling. Tensile strength is rated at 1,240 pounds and shear strength at 1,000 pounds. This rivet is manufactured to IFI 114 Grade 30 standards, confirming dimensional and mechanical compliance for structural and general-purpose fastening applications.

This rivet is suited for general industrial, mechanical, and trade applications where blind-side access limits the use of through-bolts or solid rivets. Typical use cases include HVAC ductwork assembly, electrical enclosure fabrication, sheet metal panels, and light structural joining. The dome head provides a low-profile, finished appearance on the visible face. The 100-piece packaging quantity supports both production runs and field repair work.

Key Features

• Open end design allows for standard blind installation with a pull-type rivet tool
• Dome head style delivers a clean, low-profile finished face
• Steel body and steel mandrel rated to 1,240 lb tensile and 1,000 lb shear strength
• Grip range of 0.376 to 0.5 inches accommodates varied material thickness
• Phosphate-finished mandrel for corrosion resistance during storage and service
• Meets IFI 114 Grade 30 fastener standard

Compatibility

Designed for use in any application requiring a Size 88 open end blind rivet with a 0.25-inch body diameter. Requires a drilled or punched hole sized to Drill Size F, with a minimum hole diameter of 0.257 inches and maximum of 0.261 inches.

Installation Notes

Install with a standard pull-type blind rivet tool sized for 0.25-inch body diameter rivets. Ensure hole diameter falls within the 0.257 to 0.261 inch range before setting the rivet; oversized holes reduce clamp load and can compromise joint integrity. De-energize or isolate any adjacent electrical circuits before fastening in or near electrical enclosures. Discard any rivet with a bent mandrel or damaged body before use.
