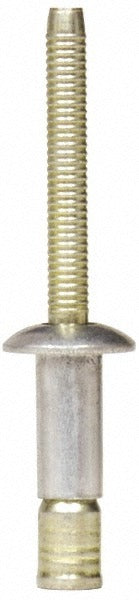

Rivetking SBS64/BB/P100 Blind Rivet Size 64 Dome Head 100pk

Product Description

The RIVETKING SBS64/BB/P100 is a structural blind rivet with a locking stem design, packaged in a quantity of 100. It features a dome head profile, a steel body, and a steel mandrel. This rivet is designed for high-strength fastening applications where access is limited to one side of the workpiece. The locking stem remains captured inside the rivet body after setting, increasing shear and tensile load capacity compared to standard open-end blind rivets. The body diameter is 3/16 inches and the grip range spans 0.062 to 0.27 inches, making it suitable for a range of material stack-up thicknesses. Installers in fabrication, mechanical contracting, and structural assembly applications rely on this rivet type for reliable, permanent joints.

This rivet is used in structural fastening scenarios where vibration resistance and stem retention are required. Typical applications include metal framing, HVAC equipment assembly, electrical enclosure fabrication, and general sheet metal work. The dome head profile seats flush against the material surface and distributes clamping load evenly. It is appropriate for both light commercial and industrial assembly environments where a single-sided fastening solution is needed and joint integrity is critical.

Key Features

• Locking stem design retains mandrel after setting for increased shear and tensile strength
• Dome head profile for even load distribution across the material surface
• Body diameter of 3/16 inches (0.1875 inches) with a required hole diameter of 0.192 to 0.196 inches
• Grip range of 0.062 to 0.27 inches accommodates a variety of material stack-up thicknesses
• Steel body and steel mandrel construction for strength and durability
• Packaged in a quantity of 100 units per pack

Compatibility

Designed as an OEM-style structural blind rivet suitable for use with standard 3/16-inch blind rivet installation tools in single-sided fastening applications.

Installation Notes

Installation requires a pneumatic or hand-operated blind rivet tool sized for 3/16-inch rivets. Always drill or punch the hole to the specified diameter range of 0.192 to 0.196 inches before setting the rivet. Verify that the total material thickness falls within the grip range of 0.062 to 0.27 inches prior to installation. Inspect the set rivet to confirm the locking stem is fully captured and the dome head is seated flat against the workpiece surface.
