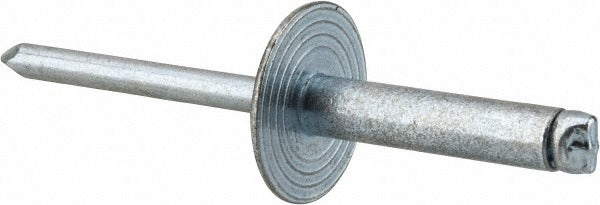

Rivetking. SBS610LF/P250 Blind Rivet Size 610 250 Pack

Product Description

The RIVETKING. SBS610LF/P250 is an open end blind rivet designed for general fastening applications where access is limited to one side of the workpiece. Built with a steel body and steel mandrel, this size 610 rivet features a large flange dome head that distributes clamping load across a wider surface area, reducing the risk of pull-through in softer or thinner base materials. It handles a grip range of 0.501 to 0.625 inches and delivers a tensile strength of 680 pounds and a shear strength of 540 pounds, making it a capable fastener for structural and semi-structural tasks. This package contains 250 rivets.

This rivet is suited for residential and commercial construction, HVAC ductwork assembly, sheet metal fabrication, and general mechanical assembly work. The large flange head is particularly useful when fastening thin-gauge panels, aluminum sheeting, or soft substrates where a standard flange head would not provide adequate bearing surface. It is installed by qualified tradespeople including sheet metal workers, HVAC technicians, and general fabricators using a standard or pneumatic rivet tool matched to a 3/16-inch body diameter.

Key Features

• Open end blind rivet design allows installation from one side only
• Large flange dome head provides wider load distribution and reduced pull-through risk
• Steel body and steel mandrel for durable, high-strength fastening
• Grip range of 0.501 to 0.625 inches accommodates variable material stack thickness
• Tensile strength of 680 pounds and shear strength of 540 pounds
• Meets IFI 114 Grade 30 fastener standard
• Phosphate finish on mandrel for corrosion resistance during service life

Compatibility

Designed for use with standard blind rivet tools accepting a 3/16-inch body diameter rivet. Hole preparation requires a No. 11 wire gauge drill bit, with an accepted hole diameter range of 0.192 to 0.196 inches.

Installation Notes

Sheet metal workers and mechanical assemblers typically install blind rivets using a hand-operated or pneumatic rivet puller matched to the correct nose piece for the body diameter. Ensure the workpiece hole is drilled to the correct diameter range before insertion to achieve proper set and full grip engagement. Do not reuse a rivet that has been partially set or where the mandrel has broken improperly. Always wear appropriate eye protection during installation to guard against mandrel stem ejection.
