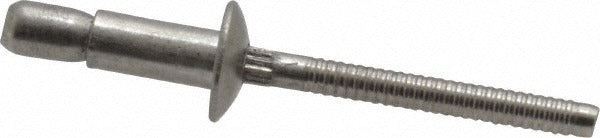

Rivetking FBF64/STR/P100 Structural Blind Rivet Ss 100pk

Product Description

The RIVETKING FBF64/STR/P100 is a structural blind rivet with a locking stem, designed for high-strength fastening applications where access is limited to one side of the workpiece. Featuring a stainless steel body and stainless steel mandrel, this size 64 rivet delivers a tensile strength of 1,000 pounds and a shear strength of 1,300 pounds. The dome head profile measures 0.385 inches in diameter, and the body diameter is 0.1875 inches (3/16 inch). The locking stem remains captured in the rivet body after installation, preserving the full structural rating of the joint. Licensed contractors and fabricators working in corrosion-prone environments will find the all-stainless construction suited for demanding service conditions.

This rivet is sized for use in applications requiring a grip range of 0.062 to 0.270 inches, with a minimum hole diameter of 0.194 inches and a maximum hole diameter of 0.204 inches. It suits structural assembly work in HVAC equipment fabrication, sheet metal enclosures, plumbing equipment frames, and other trade applications where single-side access is required and joint integrity is critical. The length under head measures 0.415 inches. Each package contains 100 rivets, making this SKU appropriate for both single-job use and small-volume stocking.

Key Features

• Locking stem design keeps the mandrel captured post-installation, maintaining full structural load capacity
• All-stainless steel body and mandrel construction for corrosion resistance in wet or outdoor environments
• Tensile strength of 1,000 pounds and shear strength of 1,300 pounds per IFI 134 standard
• Dome head profile with 0.385-inch head diameter and 0.090-inch head height
• Grip range of 0.062 to 0.270 inches accommodates a variety of material stack thicknesses
• Fits a No. 10 drill size hole; body diameter 0.1875 inches (3/16 inch)

Compatibility

Designed for use in applications conforming to IFI 134 fastener standards. Suitable for structural blind rivet installations requiring a 3/16-inch body diameter and a hole diameter between 0.194 and 0.204 inches.

Installation Notes

Installation requires a blind rivet tool rated for structural rivets; a pneumatic or heavy-duty hand rivet gun capable of handling 3/16-inch body diameter rivets is standard for this size. Drill the hole to the correct diameter before setting the rivet - oversized holes reduce joint strength. Verify material stack thickness falls within the 0.062 to 0.270-inch grip range prior to installation. Follow applicable structural fastening standards and manufacturer guidelines for joint design and spacing.
