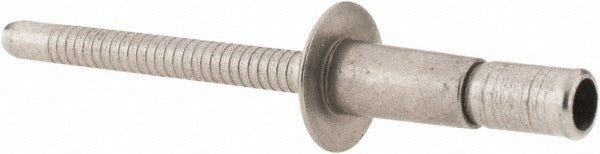

Rivetking FBF64/BB/P100 Blind Rivet Size 64 Dome Head Ss

Product Description

The RIVETKING FBF64/BB/P100 is a structural blind rivet with a locking stem design, packaged in a quantity of 100. The 3/16-inch body diameter rivet features a dome head and is constructed with a stainless steel body and stainless steel mandrel, making it suitable for corrosion-resistant fastening applications. The locking stem retained inside the rivet body after installation provides a higher-strength, vibration-resistant joint compared to standard open-end blind rivets. Trades and fabricators working in HVAC, plumbing, electrical enclosure, and general sheet metal assembly rely on this rivet where joint integrity and corrosion resistance are required.

This rivet is used in residential and commercial applications where blind-side access is the only option for fastening. Typical scenarios include attaching panels, brackets, and enclosures in ductwork assemblies, electrical boxes, pool equipment housings, and structural sheet metal fabrication. The dome head profile provides a low-profile, finished appearance on the visible face of the installation. With a grip range of 0.062 to 0.27 inches, this rivet accommodates a variety of material stack thicknesses in single-access fastening conditions.

Key Features

• Structural locking stem design retains mandrel inside body for increased joint strength and vibration resistance
• Stainless steel body and stainless steel mandrel for corrosion-resistant performance
• Dome head profile with a 0.4-inch head diameter and 0.09-inch head height
• 3/16-inch body diameter fits holes ranging from 0.194 to 0.204 inches
• Grip range of 0.062 to 0.27 inches accommodates varied material stack thicknesses
• Packaged in a quantity of 100 per package

Compatibility

Designed for use in structural blind-fastening applications requiring a 3/16-inch diameter rivet with a dome head and grip range of 0.062 to 0.27 inches. Suitable for stainless steel-to-stainless steel and mixed-material assemblies where corrosion resistance is required.

Installation Notes

Installation requires a blind rivet tool compatible with 3/16-inch diameter rivets. Before installing, confirm the hole diameter falls within the 0.194 to 0.204-inch range for proper setting. Power down or de-energize any adjacent systems before working in electrical or HVAC enclosures. Do not reuse a rivet once the mandrel has been pulled, as the structural locking engagement cannot be reset.
