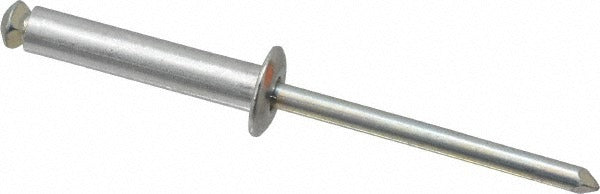

Rivetking ABSM4X20PL100 Peel Blind Rivet 100 Pack

Product Description

The RIVETKING ABSM4X20PL100 is a peel blind rivet designed for applications requiring a wide grip range and reliable holding strength in thin or layered materials. It features a dome head, an aluminum body with a zinc-plated finish, and a steel mandrel. The body diameter measures 5/32 inches, with a head diameter of 0.315 inches. On installation, the mandrel causes the rivet body to peel back into multiple legs, spreading load over a larger surface area. With a tensile strength of 325 pounds and a shear strength of 324 pounds, this rivet is suited for structural and semi-structural fastening tasks where conventional rivets may not hold adequately.

This peel blind rivet is used in applications where only one side of the workpiece is accessible. The wide grip range of 0.157 to 0.69 inches makes it effective across varied material stack thicknesses, including sheet metal assemblies, enclosures, and fabricated panels. It is commonly used in HVAC equipment assembly, electrical enclosures, trailers, and general industrial fabrication. Each package contains 100 rivets. The aluminum body resists corrosion in moderate environments, while the zinc-plated finish adds additional protection.

Key Features

• Peel design spreads load over a large back surface area for improved holding in soft or thin materials
• Wide grip range of 0.157 to 0.69 inches accommodates varied material stack thicknesses
• Aluminum body with zinc-plated finish for corrosion resistance
• Steel mandrel provides consistent installation and reliable peel action
• Tensile strength of 325 pounds and shear strength of 324 pounds
• Dome head profile with 0.315-inch head diameter for a low-profile, finished appearance

Compatibility

Designed for use in holes with a diameter of 0.165 inches. Suitable for single-sided fastening applications in sheet metal, plastics, and composite panels within the specified grip range.

Installation Notes

Installation requires a standard blind rivet pull tool sized for 5/32-inch body rivets. Ensure the hole diameter matches the specified range before setting the rivet. Deburr holes prior to installation to avoid damage to the rivet body. Do not exceed the rated grip range, as improper stack thickness can result in incomplete peel or reduced holding strength.
