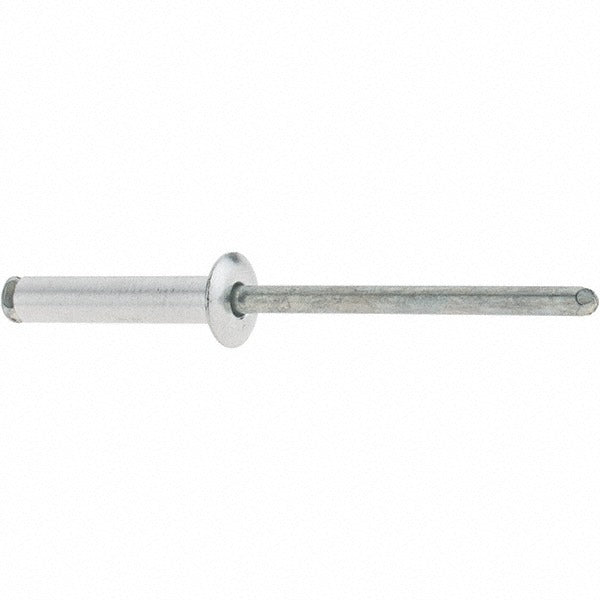

Rivetking ABSM4.8X24PL100 Peel Blind Rivet 100 Pack

Product Description

The RIVETKING ABSM4.8X24PL100 is a peel blind rivet designed for applications requiring a strong, reliable blind fastener where access to the back side of the workpiece is limited. The aluminum body with a steel mandrel and zinc-plated finish delivers corrosion resistance in demanding environments. With a 3/16 inch body diameter, a dome head style, and a grip range of 0.188 to 0.748 inches, this rivet accommodates a wide range of material stack thicknesses. The tensile strength of 353 pounds and shear strength of 405 pounds make it suitable for structural and semi-structural fastening tasks. This rivet is installed by licensed tradespeople and experienced maintenance technicians in fabrication, HVAC ductwork, sheet metal, and general assembly work.

This peel blind rivet is well suited for residential and commercial sheet metal assembly, HVAC ductwork fabrication, panel attachment, and light structural connections where a large, petal-shaped mandrel peel pattern is needed to distribute load across soft or thin substrate materials. The dome head profile sits flush against the surface on the set side, providing a clean finished appearance. The 100-unit pack quantity supports job-site and shop-floor use without requiring frequent reordering.

Key Features

• Peel rivet design spreads load across a wide bearing area on the blind side, reducing pull-through in thin or soft materials
• Aluminum body with steel mandrel and zinc-plated finish for corrosion resistance
• Dome head style provides a clean, low-profile set-side appearance
• Grip range of 0.188 to 0.748 inches accommodates varied material stack thicknesses
• 353-pound tensile strength and 405-pound shear strength for reliable load-bearing fastening
• Packed in quantities of 100 for efficient job-site use

Compatibility

Designed for use in standard blind rivet tools accepting 3/16 inch body diameter rivets with a minimum hole diameter of 0.196 inches. Suitable for aluminum, steel, and sheet metal substrates within the specified grip range.

Installation Notes

Installation requires a hand-operated or pneumatic blind rivet tool sized for 3/16 inch rivets. Drill the work material to a minimum hole diameter of 0.196 inches before inserting the rivet. Ensure the material stack thickness falls within the 0.188 to 0.748 inch grip range before setting. Always wear appropriate eye protection when setting blind rivets, as mandrel stems are ejected during installation.
