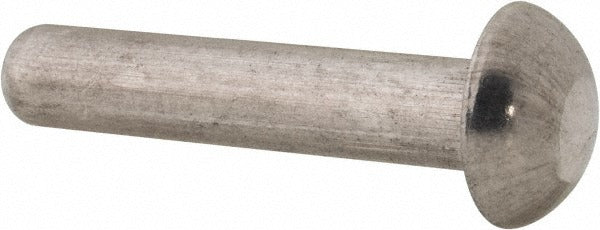

Rivetking. 25N125RRDAP/110 Solid Rivet Aluminum 1/4 in

Product Description

The RIVETKING. 25N125RRDAP/110 is a solid rivet with a round head profile, manufactured from Grade 1100F aluminum with an uncoated finish. It measures 1/4 inch in body diameter and 1-1/4 inches in length under head. Solid rivets in this material and size are used to create permanent, high-strength mechanical joints in sheet metal, structural panels, and fabricated assemblies. The 1100F aluminum alloy offers good corrosion resistance and is well suited to applications where a lightweight, non-ferrous fastener is required. Installation is performed by bucking or setting the rivet tail with pneumatic or hand rivet tools.

This rivet is appropriate for light to medium structural fabrication, HVAC ductwork assembly, trailer and enclosure manufacturing, and general sheet metal work. The round head style seats flush against the work surface on the installed side, distributing clamping load across the head flange. It is commonly used in single-piece or small-quantity tasks where controlled, permanent fastening is needed without access to the back side of the joint during setup.

Key Features

• 1/4 inch body diameter for standard medium-duty fastening applications
• 1-1/4 inch length under head accommodates typical sheet stack thicknesses
• Grade 1100F aluminum construction provides corrosion resistance and lightweight performance
• Uncoated finish suitable for applications where additional surface treatment will be applied post-installation
• Round head profile provides broad load distribution on the driven side
• Does not meet military specifications - intended for commercial and industrial use

Compatibility

Designed as a standard solid rivet for commercial and industrial fabrication applications requiring a 1/4 inch body diameter aluminum fastener with a round head profile.

Installation Notes

Solid rivets are typically installed by licensed sheet metal workers, fabricators, or HVAC technicians using a bucking bar and rivet gun or pneumatic hammer set. Ensure the work pieces are clamped securely and hole diameter is matched to the rivet body size before driving. Deburr drilled holes prior to installation to prevent stress concentrations at the joint. Follow applicable fabrication standards and workplace safety procedures when operating pneumatic fastening equipment.
