Rittal 8640002 Base Plinth Corner Pieces 100 Mm

Product Description

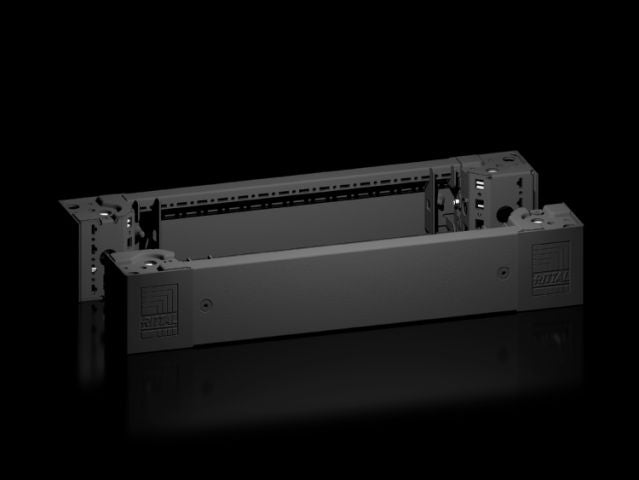

The RITTAL 8640002 is a heavy-duty base and plinth corner piece set with front and rear trim panels, designed for use with a wide range of RITTAL enclosure systems. These corner pieces feature molded self-positioning geometry that locates accurately to the enclosure base without additional alignment work. They measure 100 mm in height and provide large openings at each corner for straightforward access to screw-fastening points. The openings can be concealed using an optional plastic corner and baying cover. Suitable for installation by electrical enclosure technicians and panel builders working on industrial or IT enclosure builds.

The 8640002 is intended for base and plinth assemblies on freestanding enclosures in both industrial and IT environments. The trim panels are included for front and rear positions, giving a finished appearance to the enclosure base. These pieces can be installed with or without the trim panels depending on the application requirements, offering flexibility for open-frame or fully enclosed plinth configurations. The self-positioning feature reduces installation time during multi-enclosure baying setups.

Key Features

• Molded self-positioning design locates accurately to the enclosure base for consistent alignment
• Large corner openings provide direct access to screw-fastening points during installation
• Openings can be concealed with an optional plastic corner and baying cover for a clean finish
• Includes front and rear trim panels for a finished base appearance
• Compatible with or without trim panels depending on application needs
• 100 mm plinth height suits standard freestanding enclosure base configurations

Compatibility

Designed for use with RITTAL VX, VX IT, VX SE, TE, TS, TS IT, TP, PC, and IW enclosure systems.

Installation Notes

Installation is typically performed by enclosure assembly technicians or qualified panel builders. Power down all equipment housed in or connected to the enclosure before beginning base or plinth work. Standard hand tools are sufficient for fastening the corner pieces to the enclosure base. Follow the enclosure manufacturer's assembly instructions and any applicable local electrical or mechanical codes when configuring multi-bay plinth arrangements.

Technical Specifications

• Plinth Height: 100 mm
• Trim Panel Positions: Front and rear

Standard Information

• Brand: RITTAL
• Manufacturer Part Number: 8640002
