Rittal 8612040 Ts System Chassis 17 x 73 mm

Product Description

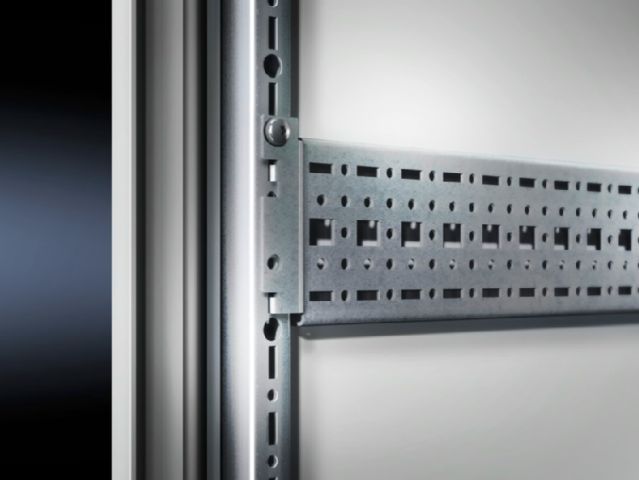

The RITTAL 8612040 TS System Chassis is designed for universal skeleton structures or partial assembly. It easily locates into punchings and secures for the inner mounting level and for mounting on doors. This zinc-plated carbon steel chassis includes assembly screws for installation.

• For universal skeleton structures or partial assembly.
• Simply locate onto the punchings and secure.
• For the inner mounting level and for mounting on doors

Product Highlights

The RITTAL TS System Chassis simplifies enclosure assembly with its easy-to-use design and durable construction.

Product Information

Standard Information

• Brand: RITTAL
• Manufacturer Part Number: 8612040

Technical Specifications

• Article no.: TS 8612040
• Version: For the inner mounting level and for mounting on doors
• Material: Carbon steel
• Surface finish: Zinc-plated
• Supply includes: Assembly screws
• Length: 390 mm ( 15.4 ")
• Suitable for door width: 500 mm ( 19.7 ")
• Installation options: On the vertical TS, VX SE enclosure profile: on the inner mounting level, all-round, height-offset On the horizontal VX SE enclosure section top, in depth In TP via rails for interior installation: in width, for inner mounting level As installation kit for device bases in TS, VX SE, simply hook in and secure
• Suitable for: Enclosure type: VX SE TP PC IW Width/depth: 400 mm ( Enclosure type: VX SE TP PC IW Width/depth: 15.7 ")
• Brand: RITTAL
• Manufacturer Part Number: 8612040
• Series: TS Series
• Dimensions: 390 mm L x 73 mm W x 17 mm D
• Suitable For Use With: TS Series 400 mm W x 400 mm D Enclosure
• Accessory Type: Chassis
• For Use With/Related Products: Enclosures
• Packaging: Retail Package
