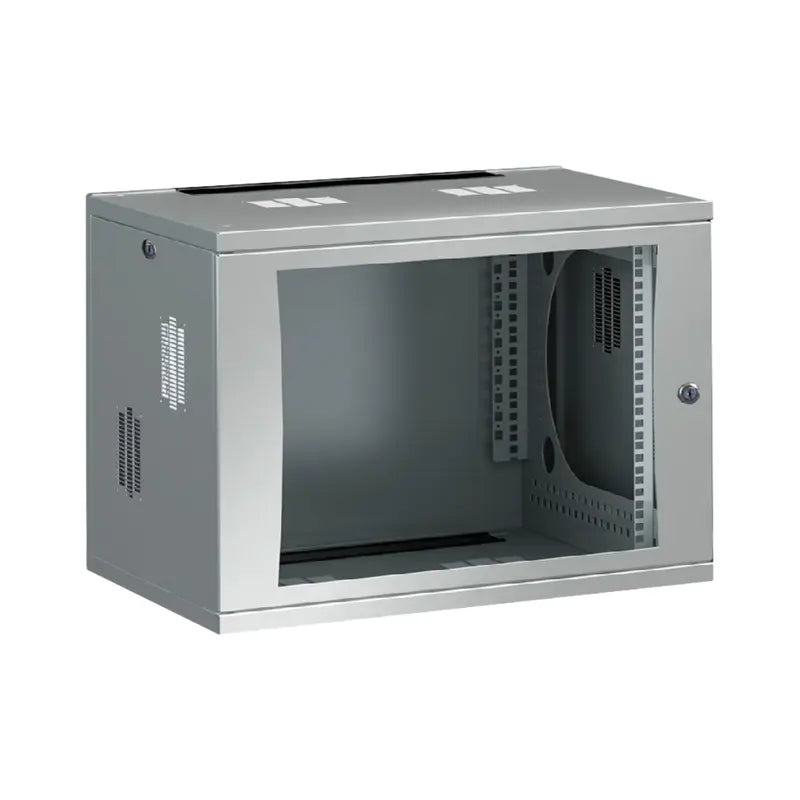

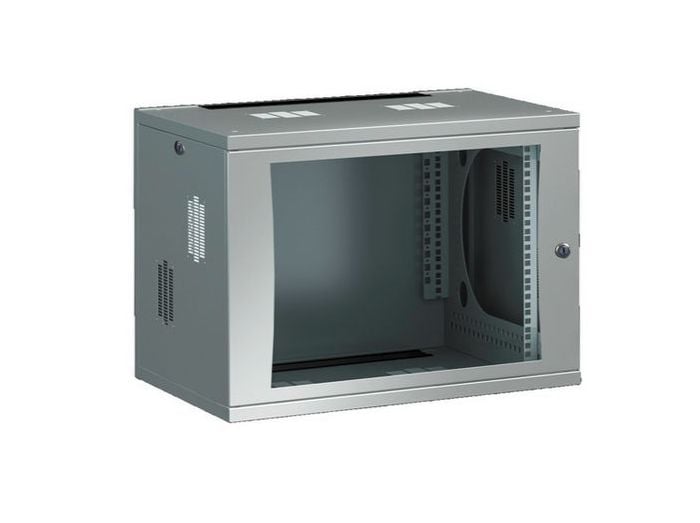

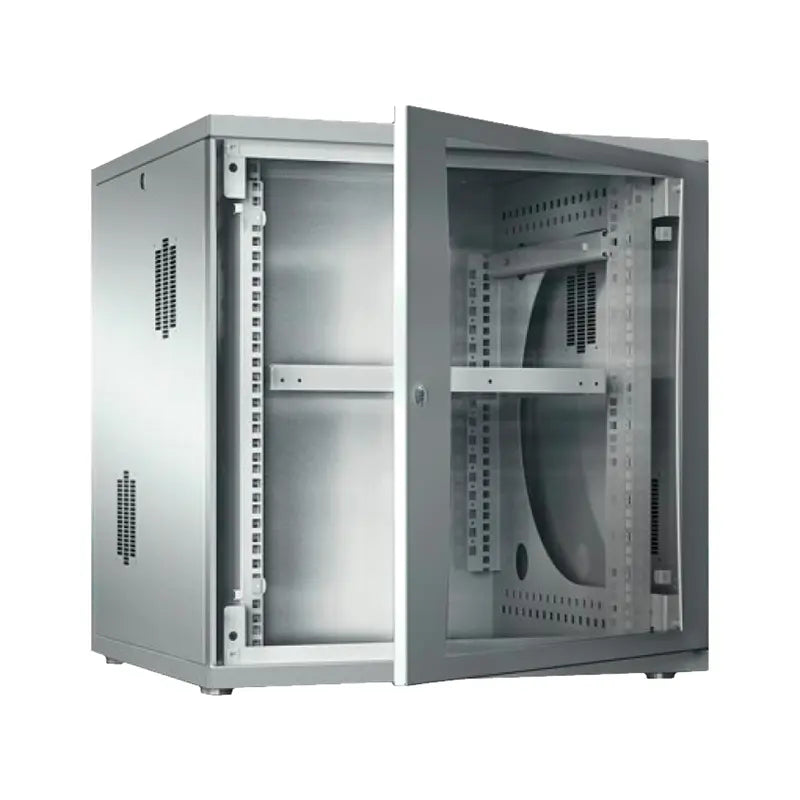

Rittal 7507110 FlatBox 9 U

Product Description

The RITTAL 7507110 FlatBox is designed for flexible use as a wall-mounted or floor-standing enclosure. It features tool-free quick assembly and system assembly on the open 482.6 mm (19") frame. The enclosure has a 9U installation height for components and a safety glass viewing window.

• Tool-free quick assembly
• System assembly on the open 482.6 mm (19") frame
• For flexible use as a wall mounted or floor standing enclosure

Product Highlights

The RITTAL FlatBox offers easy assembly and versatile mounting options for various industrial applications.

Product Information

Standard Information

• Brand: RITTAL
• Manufacturer Part Number: 7507110

Technical Specifications

• Design: with 482.6 mm (19") mounting angles
• Material: Sheet steel
• Viewing window: Single-pane safety glass, 3 mm
• Surface finish: Powder-coated
• Colour: RAL 7035
• Units: 9 U
• Width: 600 mm
• Height: 492 mm
• Depth: 600 mm
• Installation height for components: 12 U
• Load capacity: max. 450 N
• Basic material: Sheet steel
• Version: with 19" mounting rails
• Color: RAL 7035
• Height units: 9 U
• Base material: Carbon steel
• Number of Doors: 1
• Window/Clear Cover: Yes
• Nominal Height: 20 "
• Nominal Width: 24 "
• Nominal Depth: 24 "
• Steel: Metallic
