Rittal 6218210 Support Section CP 180 Open

Product Description

The RITTAL 6218210 support section CP 180 open attaches to connection components with 4 self-tapping screws in the screw channel. It features an open cable duct for easy servicing access and is suitable for pre-assembled cables with connectors. The support can be cut to any required length and is lockable via cover profile.

• Attached to the connection components with 4 self-tapping screws in the screw channel.
• May be cut to any required length, no thread-tapping required.
• Open cable duct for easy servicing access and for pre-assembled cables with connectors, lockable via cover profile.

Product Highlights

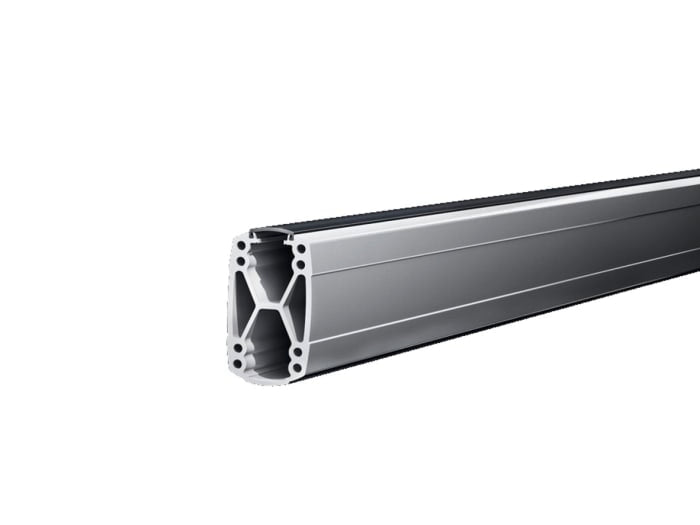

The support section has X-shaped profiling for greater load capacity and large cable routing channels. The upper channel is suitable for cables with large connectors (e.g. DVI or VGA).

Product Information

Standard Information

• Brand: RITTAL
• Manufacturer Part Number: 6218210
• Country of Origin: Germany

Technical Specifications

• Material: Support section: Extruded aluminum section Cover: Plastic
• Color: Support section: RAL 7035 Cover: RAL 7024
• Supply Includes: Support section Clip-in lid
• Length: 2,000 mm
• Width: 90 mm
• Height: 160 mm
• Packaging Unit: 1 pc(s).
• Net Weight: 21.442 kg
• Gross Weight: 22.571 kg
• Customs Tariff Number: 76042100
• ETIM 9: EC000882
• ECLASS 8.0: 27400556
• Width (in): 3.54in
• Height (in): 6.3in
• RAL-number: 7035/7024
• Max. load (kg): 40
• Model: CP 180
• Part number: 6218210
• Primary brand: Rittal
• Main function: Support arm (Straight section)
• Product series / family name: Industrial workstations > Support arm systems / stand systems > Support arms
• Sub-range name: CP180 support arm systems series
• Functions: Support section
• Design: open
• Contents: support section, clip-in lid
• ETIM code: EC000882 (ETIM 7.0)
• ECLASS code: 27400556 (ECLASS 8.0)
• Order code / Manufacturer SKU: 6218.210
• Equivalent to: CP 6218.210
• EAN code: 4028177683853
• Compliant with standard(s): GOST
• Manufacturer product status: Commercialized
• Product Type: Enclosure Section
• Country of Origin: Germany
