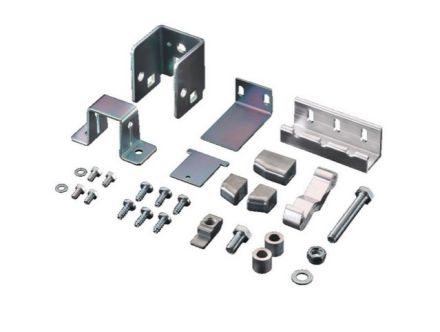

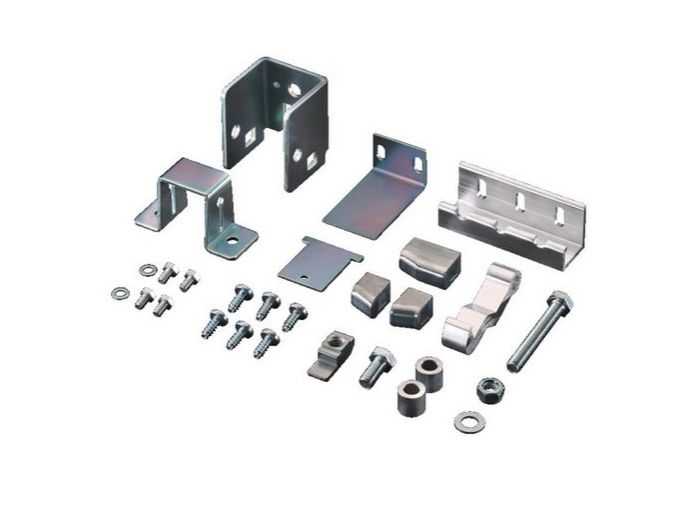

Rittal 4911100 adjacent door latch (1 pc)

Product Description

Rittal 4911100 is an adjacent door latch designed for two-door TS series enclosures to provide mechanical interlock and door-locking for bayed enclosure combinations. The latch extends conventional master switch door locks so the main door must be opened before adjacent doors, and meets UL 508A requirements when used with the isolator door cover.

• Designed for installation in adjacent TS series two-door enclosures to lock bayed combinations
• Extends conventional master switch functionality so main door opens before adjacent doors; meets UL 508A with isolator door cover; RoHS compliant
• Sold as a single-piece kit

Product Highlights

Mechanical interlock latch for TS two-door bayed enclosures; 1 pc kit; UL 508A (with isolator); RoHS compliant

Product Information

Standard Information

• Brand: RITTAL
• Manufacturer Part Number: 4911100
• Country of Origin: Germany

Technical Specifications

• Brand: Rittal
• Manufacturer Part Number: 4911100
• Article Number: TS 4911100
• Product Description: Adjacent door latch for two-door enclosures
• Intended Use: Latch for installation in an adjacent enclosure; door-locking of bayed enclosure combinations
• Suitable For Use With: TS Series 2-door enclosures; conventional master switch systems
• Packaging Unit: 1 pc
• Net Weight: 0.8 kg
• Gross Weight: 0.835 kg
• EAN: 4028177624924
• Customs Tariff Number: 83015000
• ETIM: EC000327
• ECLASS: 27409217
• Compliance: UL 508A when used with isolator door cover; RoHS compliant
• Application: Industrial; bayed enclosure suites
• Country of Origin: DE
