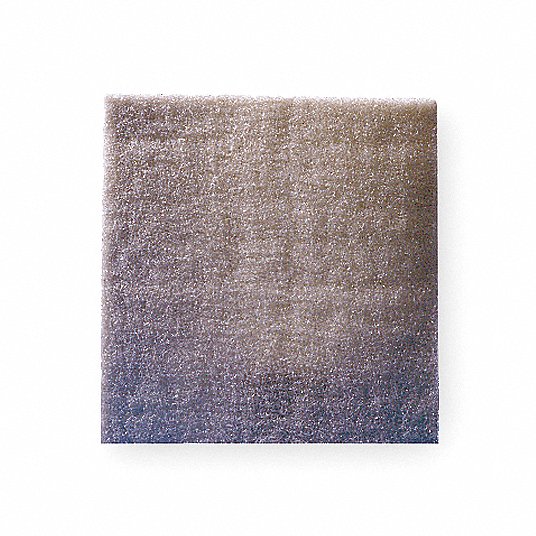

Rittal 3173100 Chopped Fiber Filter Mat 5 pc(s).

Product Description

The RITTAL 3173100 replacement filter mats for roof fans, filter fans, or thermoelectric coolers effectively protect control enclosure components from dirt, dust, and water. Made of chopped-fiber mat with a progressive construction. Temperature-resistant to 100 °C, self-extinguishing category F1 to DIN 53 438.

• Replacement filter mats
• Protects components from dirt, dust and water
• Temperature-resistant to 100 °C

Product Highlights

The filter mats reliably filter virtually all types of dust from a particle size of 10 µm.

Product Information

Standard Information

• Brand: RITTAL
• Manufacturer Part Number: 3173100
• Country of Origin: USA

Technical Specifications

• Version: for filter fans
• Material: Chemical fibers
• Note: Not suitable for use in EMC filter fans.
• Suitable for Model No.: 3243.... 3244.... 3245....
• Width: 289 mm
• Height: 11 Inch
• Depth: 17 mm
• Filter class to DIN EN 779: G3
• Filter class to DIN EN ISO 16890: ISO coarse 50%
• Packaging unit: 5 pc(s).
• Net weight: 0.1 kg
• Operating Temperature: 100 deg C
• Suitable For Use With: SK 3243, 3244 and 3245 Fan and Filter Unit
• Brand: RITTAL
• Manufacturer Part Number: 3173100
• Primary Type: Fan Accessories
• Series: Blue e+ Series
• Size: 11.38 x 11.77 x 0.67" (289 x 299 x 17mm) in
• Type: Fan Filter Spare Mat
• For Climate Control Solutions: For Climate Control Solutions
• Max Temperature: 100 degrees C
• Used With: 3326, 3243, 3244, 3245 Fan and Filter Units
• Length: 0.67 Inch
• Fits Fan Shape: Square
• Media Material: Polyester
• Product Type: Filter
• For Fan Size: 12-13/16 in
