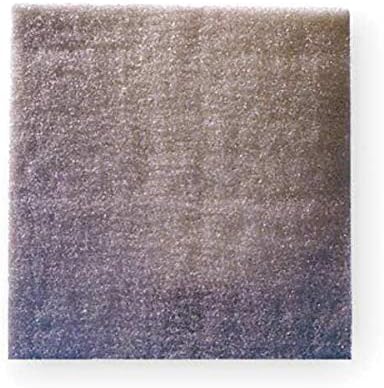

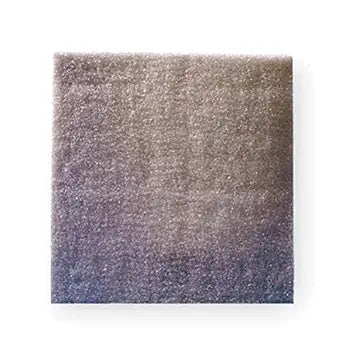

Rittal 3171100 Chopped Fiber Filter Mat (5 pc(s).)

Product Description

The RITTAL 3171100 chopped fiber filter mat is made of chopped-fiber mat with a progressive construction. It is temperature-resistant to 100 °C and self-extinguishing category F1 to DIN 53 438. It reliably filters virtually all types of dust from a particle size of 10 µm.

• Replacement filter mats effectively protect control enclosure components from dirt, dust and water.
• Dust-laden air side has an open structure.
• Clean-air side has a closed structure.

Product Highlights

The Rittal 3171100 filter mat is suitable for filter fans and thermoelectric coolers.

Product Information

Standard Information

• Brand: RITTAL
• Manufacturer Part Number: 3171100
• Country of Origin: DE

Technical Specifications

• Material: Chemical fibers
• Suitable for Model No.: 3239....
• Width: 173 mm
• Height: 173 mm
• Depth: 17 mm
• Filter class to DIN EN 779: G3
• Filter class to DIN EN ISO 16890: ISO coarse 50%
• Filtration Rating: 10 um
• For Use With: SK 3323
• Manufacturer Part Number: 3171100
• Primary Type: Fan Accessories
• Series: Blue e+ Series
• Size: 6.8 x 6.8 x 0.6" (173 x 173 x 17 mm) in
• Operating Temperature: 100 deg C
• Suitable For Use With: SK 3239 Fan and Filter Unit
• THK: 0.67 in
• Dimensions: 6.8 in H x 6.8 in W x 0.67 in D
