Rittal 2584000 Pole Mount Kit Wall-mounted Enclosures

Product Description

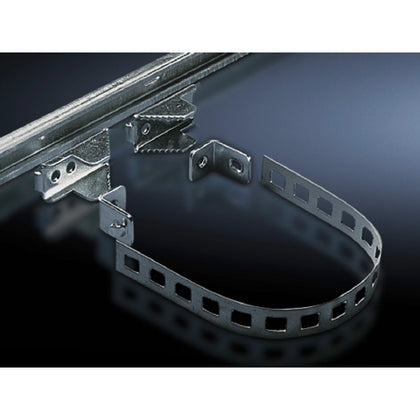

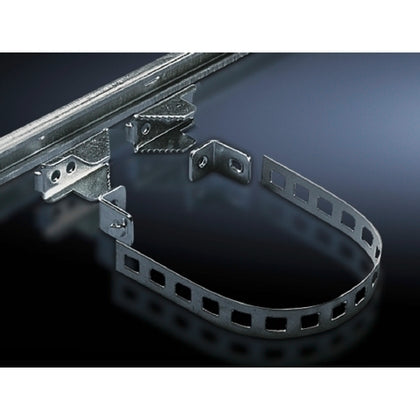

The RITTAL 2584000 is a pole clamp mounting kit designed for attaching wall-mounted enclosures to round or square poles in electrical and industrial applications. The kit provides a secure, rigid connection between the enclosure and the mounting pole using a combination of mounting angles, clamping straps, and clamping sections. Mounting angles and clamping sections are constructed from zinc-plated sheet steel for corrosion resistance, while the clamping straps are stainless steel AISI 304 for added durability in demanding environments. This kit is installed by licensed electricians and enclosure technicians working on pole-mounted distribution, control, and junction box applications.

This pole mount kit is suited for use in residential, commercial, and light industrial installations where enclosures must be mounted to vertical poles rather than flat wall surfaces. It is compatible with RITTAL KL, EB, BG, AE, KS, and CS series wall-mounted enclosures. Typical applications include outdoor electrical distribution panels, street-side control enclosures, and utility pole-mounted junction boxes where a permanent, weather-resistant fastening solution is required.

Key Features

• Mounts wall-mounted enclosures securely to round or square poles
• Mounting angles are 600 mm long, providing a stable base for enclosure attachment
• Clamping straps made from stainless steel AISI 304 resist corrosion in outdoor environments
• Zinc-plated sheet steel mounting angles and clamping sections provide additional corrosion protection
• Complete hardware kit includes 2 mounting angles, 2 clamping straps, 4 clamping brackets, 4 clamping sections, and 4 M8 screws with captive nuts
• Designed for reliable and convenient pole fastening without custom fabrication

Compatibility

Compatible with RITTAL KL, EB, BG, AE, KS, and CS series wall-mounted enclosures as specified by the manufacturer.

Installation Notes

Installation is typically performed by a licensed electrician or qualified enclosure installer. Before mounting, ensure power to any connected equipment is de-energized and locked out per NFPA 70E procedures. Verify that the mounting pole is structurally rated to support the combined weight of the enclosure, kit hardware, and any internal components. M8 fasteners should be tightened using standard hand tools in accordance with the enclosure manufacturer guidelines.

Technical Specifications

• Mounting Angle Material: Zinc-plated sheet steel
• Clamping Strap Material: Stainless steel AISI 304 (1.4301)
• Mounting Angle Length: 600 mm (approximately 23.6 inches)
• Fastener Size: M8 screws with captive nuts
• Kit Contents: 2 mounting angles, 2 clamping straps, 4 clamping brackets, 4 clamping sections, 4 M8 screws with captive nuts
• Pole Type Compatibility: Round or square poles

Standard Information

• Brand: RITTAL
• Manufacturer Part Number: 2584000
