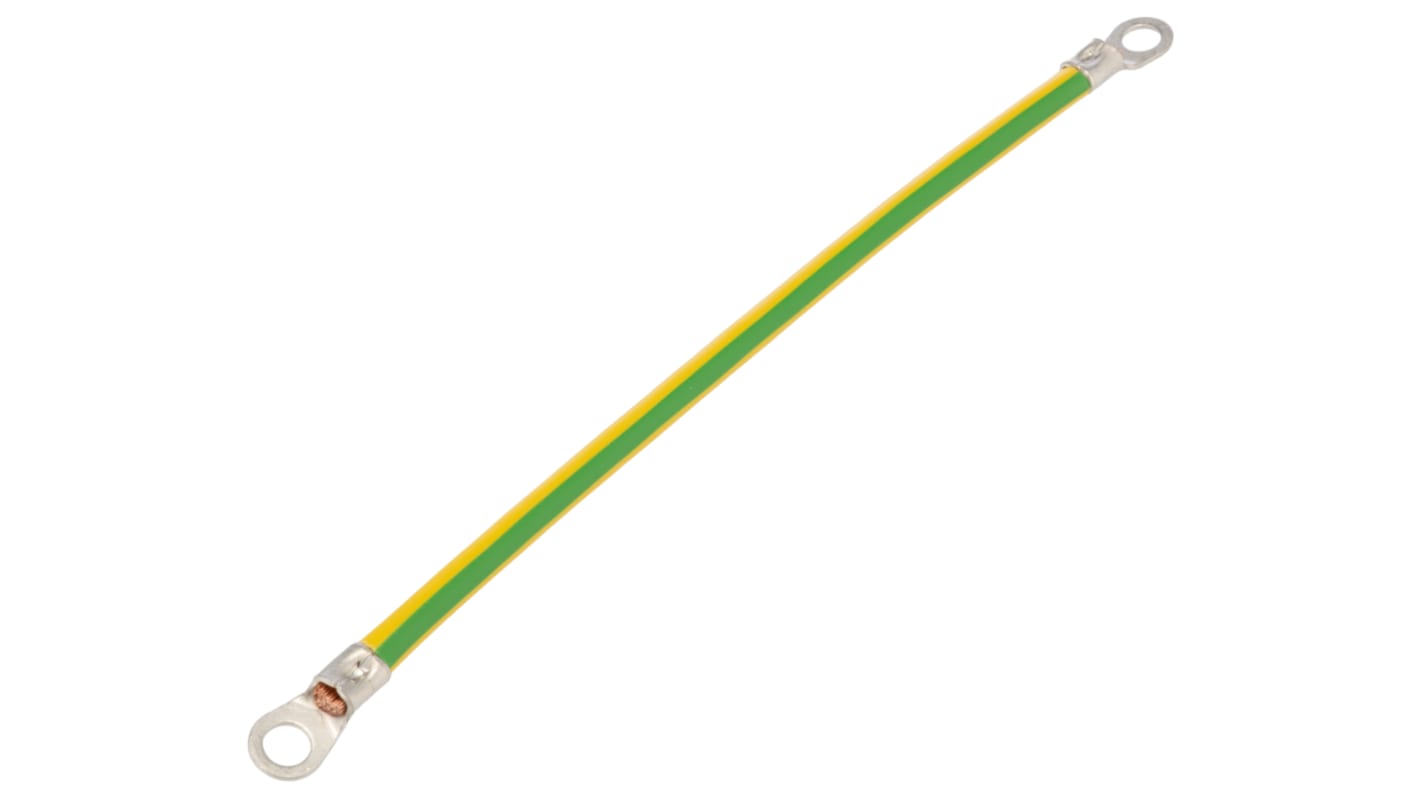

Rittal 2565100 Earth Strap M6-M6 200 mm SZ 2565.100

Product Description

The RITTAL 2565100 earth strap configures a reliable earthing connection with perfect contact. It features ring terminals in M6 and M8 to match the earthing screws and is length-optimized and ready to install. Designed with a cross-section of 10 mm ² and a length of 200 mm, it is suitable for industrial applications.

• With ring terminals in M6 and M8 to match the earthing screws
• Length-optimised and ready to install
• For configuring a reliable earthing connection with perfect contact

Product Highlights

The RITTAL 2565100 earth strap ensures optimal contact for effective grounding solutions in various industries.

Product Information

Standard Information

• Brand: RITTAL
• Manufacturer Part Number: 2565100
• Country of Origin: DE

Technical Specifications

• Cross-section: for 10mm2
• Connection: M6 ">– M6
• Installation options: KX connection options: Door/cover M6, enclosure M6, mounting plate M6
• Length: 200 mm
• Series: SZ Series
• Type: M6 to M6 Connection
• Product Type: Earthing Strap
• Standards/Approvals: EAC
• Minimum Wire CSA: 10mm ²
• Maximum Wire CSA: 10mm ²
• Main function: Grounding
• Functions: Earthing / grounding strap
• Connection type: M8 ring term. connection
• Contents: 5pcs
• Equivalent to: SZ 2565.100
• Compliant with standard(s): EAC
• Net weight: 0.13 kg
• Merk: Rittal
• Productgroep: Litze
• Serie/Programma: SZ
• Geleidermateriaal: Koper, blank
• Nom. geleiderdoorsnede (mm ² ): 10
• Samenstelling geleider: Klasse 5 = soepel
• Geleidervorm: Rond
• Kabelbreedte circa (mm): 200
