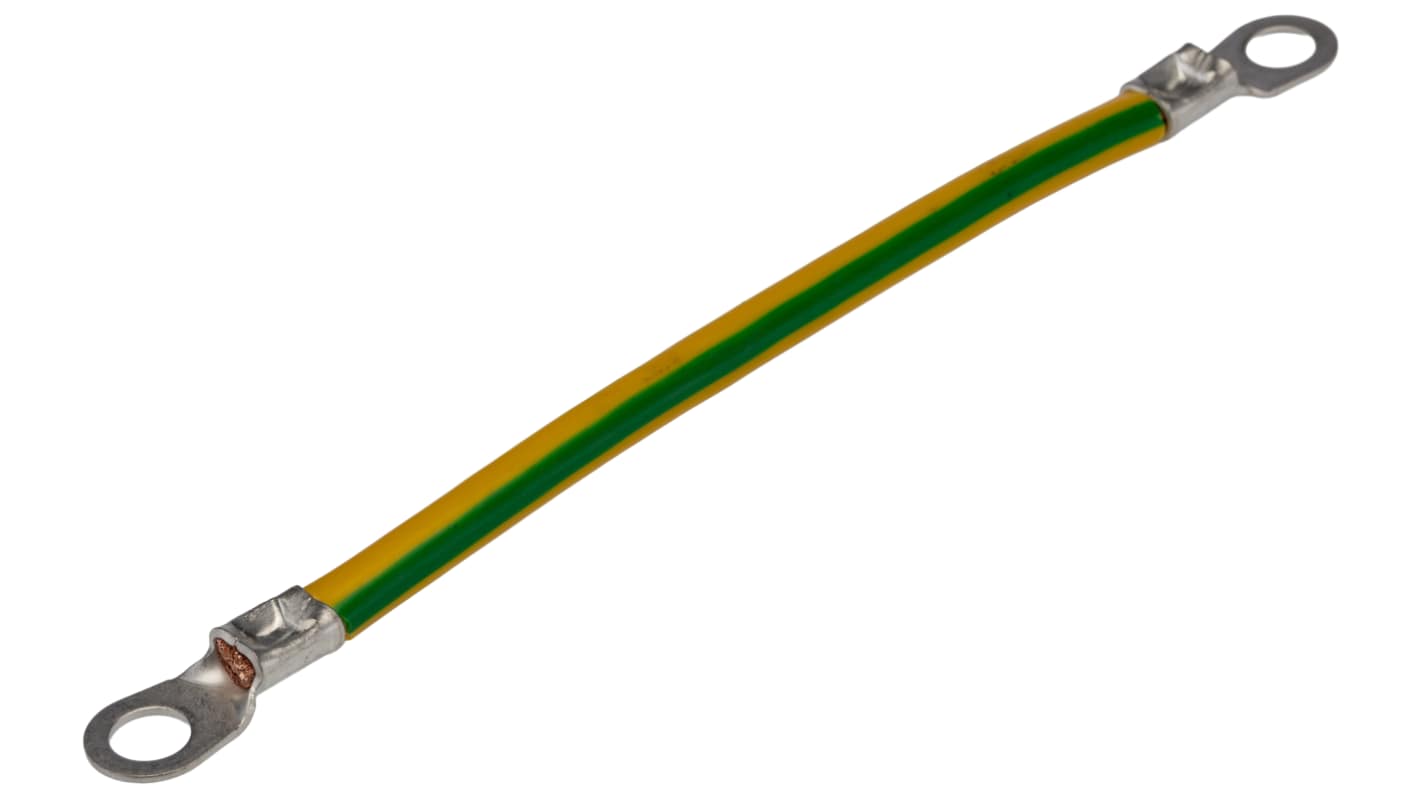

Rittal 2565000 Earth Straps

Product Description

The RITTAL 2565000 configures a reliable grounding connection with perfect contact. It comes with ring terminals in M6 and M8 to match the grounding screws, length-optimized and ready to install. This earthing strap provides high traffic earthing capabilities for various applications in industrial settings.

• For Configuring a Reliable Earthing Connection with Perfect Contact
• M8 ring term. connection
• Length-optimised and ready to install

Product Highlights

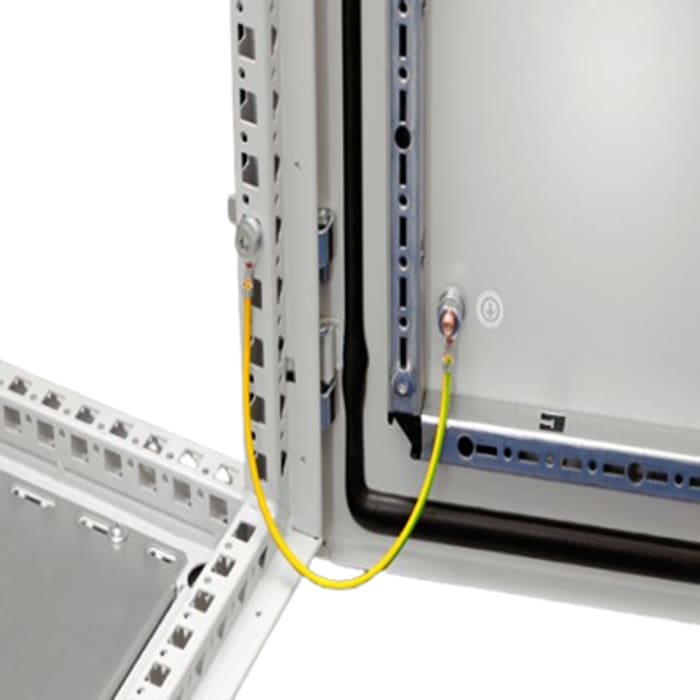

The RITTAL 2565000 earthing strap ensures proper grounding in electrical equipment, maintaining safety and functionality in industrial settings.

Product Information

Standard Information

• Brand: RITTAL
• Manufacturer Part Number: 2565000

Technical Specifications

• Application: Industrial
• Length: 170mm
• Connection: M8-M8
• Cross Section: 16 MM
• Main function: Grounding
• Functions: Earthing / grounding strap
• Connection type: M8 ring term. connection
• Cross-section: for 16mm2
• Contents: 5pcs
• Order code / Manufacturer SKU: 2565.000
• Manufacturer product status: Commercialized
• Equivalent to: SZ 2565.000
• EAN code: 4028177027893
• Compliant with standard(s): EAC
• Net weight: 0.18 kg
• Installation options AX connection options: Door/cover M8, enclosure M8, mounting plate M8
• VX connection options: Door/cover M8, enclosure M8, mounting plate M8, side panel M8, gland plate M8
• Packs of: 5 pc(s).
• ETIM 9: EC000839
• ETIM 8: EC000839
• ECLASS 8.0: 27062302
• Product Type: Earthing Strap
• Standards/Approvals: EAC
• Maximum Wire CSA: 16mm
• Minimum Wire CSA: 16mm
