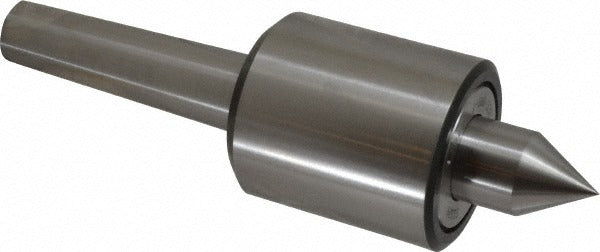

Riten 51604 Live Center MT4 Taper Shank 5500 Rpm

Product Description

The RITEN 51604 is a heavy-duty live center designed for precision lathe work in metalworking and machining environments. It accepts a Morse Taper 4 (MT4) shank and features a standard 60-degree included-angle point with a 1.25-inch point diameter and a 2-inch point length. The head diameter measures 2.875 inches. Built for demanding production and toolroom applications, the 51604 supports workpieces up to 2,200 pounds and runs up to 5,500 RPM. The body is heat-treated for additional strength, and the through-hardened points reach 61 to 63 Rc hardness for long service life.

This live center is suited for horizontal lathe applications in industrial machining shops, toolrooms, and production environments where heavy workpieces and high spindle speeds are common. The full-length spindle provides extra rigidity during deep cuts and heavy stock removal. The quad bearing design supports both radial and axial loads, making it appropriate for between-centers turning operations on large-diameter or long-shaft workpieces. Licensed machinists and CNC lathe operators are the primary installers.

Key Features

• MT4 taper shank for direct spindle mounting on compatible lathe tailstocks
• Quad bearing design with tri-bearing configuration for superior load handling and radial support
• Full-length spindle for extra rigidity under heavy cutting loads
• Body heat-treated for additional strength and wear resistance
• Points through-hardened to 61 to 63 Rc for extended service life
• Supports workpieces up to 2,200 pounds at up to 5,500 RPM

Compatibility

Designed for use with lathes equipped with a Morse Taper 4 tailstock socket. Suitable for heavy-duty between-centers turning applications requiring a 2.875-inch head diameter live center.

Installation Notes

Installation is performed by a qualified machinist or lathe operator. The MT4 taper shank should be cleaned and inspected for nicks or burrs before seating into the tailstock bore. Power down and lock out the lathe spindle before inserting or removing the center. Apply appropriate center pressure based on workpiece weight and material to avoid overloading the bearing assembly.
