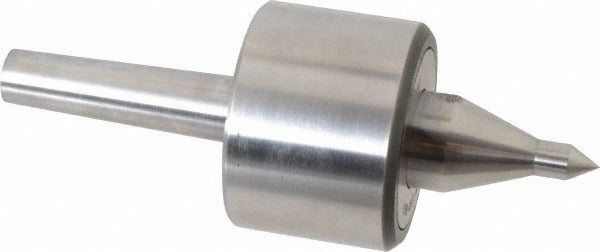

Riten 48102 Live Center MT2 Taper Shank Long Point

Product Description

The RITEN 48102 is a taper-shank live center designed for use in metal lathes and turning centers where precise, rotating support of the workpiece is required. Built on an MT2 Morse taper shank, this unit seats directly into a tailstock without an adapter. The body is heat-treated steel, and the full-length spindle provides extra rigidity under load. Two angular contact bearings support the rotating assembly, enabling a maximum spindle speed of 4,000 RPM while handling workpiece weights up to 310 pounds. The long-point configuration with a 3/8-inch point diameter and a 60-degree included angle allows clearance for cutting tools during close-tolerance turning operations.

The RITEN 48102 is suited to general-purpose turning in job shops, production machine shops, and tool rooms. It is intended for use in lathes with MT2 tailstock bores. The long-point style is particularly useful when turning near the tailstock end of the workpiece, where standard-point centers can interfere with the tool path. This center is installed and serviced by machinists and tool-and-die technicians performing cylindrical turning, taper turning, and between-centers grinding setups.

Key Features

• MT2 Morse taper shank for direct tailstock mounting without adapter
• Two angular contact bearings for high-speed, high-load performance in a compact housing
• Long-point configuration provides tool clearance during close-work turning operations
• Through-hardened points rated 61-63 Rc for wear resistance and long service life
• Heat-treated body with full-length spindle for additional strength and rigidity
• Rated to 4,000 RPM with a 310-pound maximum workpiece weight and 4,480-pound load capacity

Compatibility

Designed for use in lathes and turning centers with an MT2 Morse taper tailstock bore. Verify tailstock taper bore size before installation.

Installation Notes

Installation is performed by a qualified machinist. Power down and bring the spindle to a complete stop before installing or removing the center from the tailstock. Clean the tailstock bore and the taper shank thoroughly before seating to ensure full contact and accurate alignment. Do not use the live center beyond its rated RPM or workpiece weight limits, as overloading the bearings will reduce service life and accuracy.
