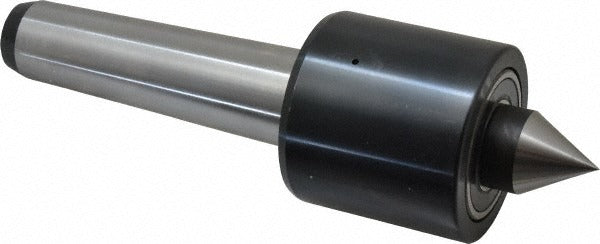

Riten 44104 Live Center MT4 Taper Shank 2-3/8 Inch Head

Product Description

The RITEN 44104 is a taper-shank live center designed for precision lathe work in metalworking and machining applications. Fitted with an MT4 Morse taper shank and a 2-3/8 inch head diameter, this center supports workpiece weights up to 1,100 pounds and runs at speeds up to 2,500 RPM. The 1-inch standard point is through-hardened to 61-63 Rc for long service life. Three rows of sealed, life-lubricated bearings handle radial and thrust loads simultaneously, giving the unit a rated load capacity of 2,200 pounds. Accuracy is held to 0.0002 inch. Installed by machinists and tool-and-die workers on manual and CNC lathes.

The 44104 fits between-centers turning, facing, and cylindrical grinding operations where a rotating center is needed to support the tailstock end of a workpiece. The MT4 shank seats directly in a compatible lathe tailstock taper bore. The 60-degree included angle and 1-inch point diameter suit a wide range of shaft diameters and center-drilled workpieces. A 1/4 inch gage line clearance accommodates tooling clearance requirements during close-tolerance operations. The sealed bearing assembly resists coolant ingress and swarf contamination, making this center appropriate for wet-cutting environments common in production and job-shop settings.

Key Features

• MT4 Morse taper shank seats directly in standard lathe tailstock bores
• Triple-row sealed bearings lubricated for life, rated to 2,200 lb load capacity
• Through-hardened standard point, 61-63 Rc, resists wear at the contact tip
• Sealed against coolant and contaminants without requiring field lubrication
• 0.0002 inch accuracy for precision between-centers work
• 1/4 inch gage line clearance for tooling access near the tailstock

Compatibility

Designed for use in lathe tailstocks with an MT4 Morse taper bore. Confirm tailstock taper size before installation.

Installation Notes

Installation is performed by qualified machinists following standard lathe setup procedures. Power down and de-energize the machine before inserting or removing the center from the tailstock. Clean the taper bore and shank with a lint-free cloth to remove chips, oil film, or coolant residue before seating the center; contaminants in the taper joint reduce holding force and introduce runout. This unit contains sealed, non-repairable bearings and should not be disassembled in the field.
