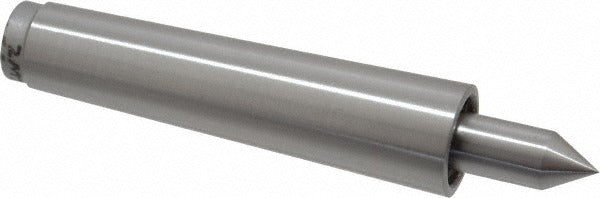

Riten 17102 Live Center MT2 Taper Shank 2200 Lb

Product Description

The RITEN 17102 is a taper shank live center designed for use in lathes and turning centers where workpiece support at the tailstock is required. Fitted with an MT2 Morse taper shank and a standard 60-degree point, it supports workpieces up to 2,200 pounds and operates at speeds up to 3,000 RPM. The center features a low-profile design and an internal mechanism that compensates for thermal expansion, helping maintain consistent contact and accuracy during extended machining runs. Accuracy is rated at 0.0001 inches. This unit is intended for installation and use by machinists and tool-and-die professionals working on manual or CNC lathes.

The RITEN 17102 is suited for general-purpose turning applications in production and job-shop environments. It is appropriate for use in both light-duty and heavy-duty lathe setups where stable workpiece support and rotational accuracy are critical. The MT2 taper shank fits standard tailstock bores of that size, making it a common replacement or spare for a wide range of horizontal lathes. Applications include turning of shafts, spindles, and cylindrical components where center-to-center support is required.

Key Features

• MT2 Morse taper shank for direct tailstock mounting
• Standard 60-degree point with 0.378-inch point diameter and 0.88-inch point length
• Supports workpieces up to 2,200 pounds with a thrust load rating of 173 pounds
• Maximum spindle speed of 3,000 RPM
• Compensates for thermal expansion during prolonged machining operations
• Low-profile design suitable for confined tailstock clearances
• Accuracy rated at 0.0001 inches

Compatibility

Designed as a direct-fit replacement for lathes equipped with an MT2 Morse taper tailstock bore. Verify taper size and bore condition before installation.

Installation Notes

Installation is performed by machinists or machine tool technicians. Before mounting, power down and lock out the lathe per applicable machine safety procedures. Clean the tailstock bore and the taper shank thoroughly to ensure full seating and accurate alignment. Do not force the taper; a properly cleaned and matched taper should seat firmly by hand pressure followed by light tailstock quill advancement.
