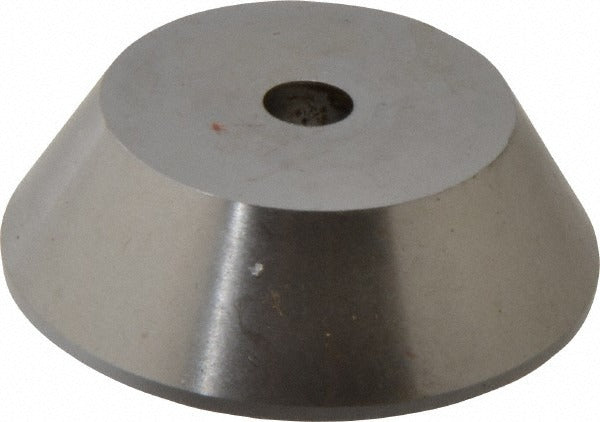

Riten 00232 Bell Head Lathe Point 1.24 to 1.82 in

Product Description

The RITEN 00232 is a bell head point designed for use with live centers on metalworking lathes. Machined from hardened tool steel, this replacement point accepts workpieces with point diameters ranging from 1.24 to 1.82 inches. The bell head profile provides a broad, cupped contact surface that stabilizes larger-diameter stock during turning operations. Accuracy is held to 0.0001 inches, making it suitable for precision turning work where runout and concentricity matter. Machinists and tool room technicians install this point as a direct replacement when a worn or damaged bell head point needs to be swapped out on an existing live center assembly.

This point is intended for lathe setups that require support of larger or hollow-ended workpieces where a standard point style would not provide adequate contact. It is commonly used in production and job shop environments running manual or CNC lathes. The bell head geometry is well suited for supporting tubing, pipe, or shaft ends with chamfered or countersunk profiles. Installation requires only that the live center accept a compatible point shank - confirm shank fit before ordering.

Key Features

• Bell head point style provides broad contact surface for larger-diameter or hollow stock
• Fits workpieces with point diameters from 1.24 to 1.82 inches
• Hardened tool steel construction resists wear under continuous turning loads
• Accuracy of 0.0001 inches supports precision turning applications
• Designed as a replacement point for compatible live center assemblies

Compatibility

Designed for use with live centers that accept interchangeable bell head points. Confirm shank compatibility with the live center model in service before installation. No specific compatible live center model numbers were provided in the product data.

Installation Notes

Installation is performed by qualified machinists or tool room personnel familiar with lathe tooling. Power down and lock out the lathe before removing or installing any live center point. Ensure the point shank seats fully and securely in the live center body before resuming operation. Inspect mating surfaces for burrs or debris that could affect runout before seating the new point.
