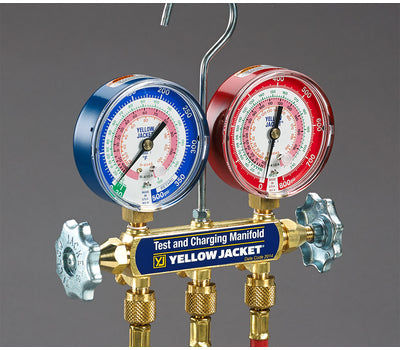

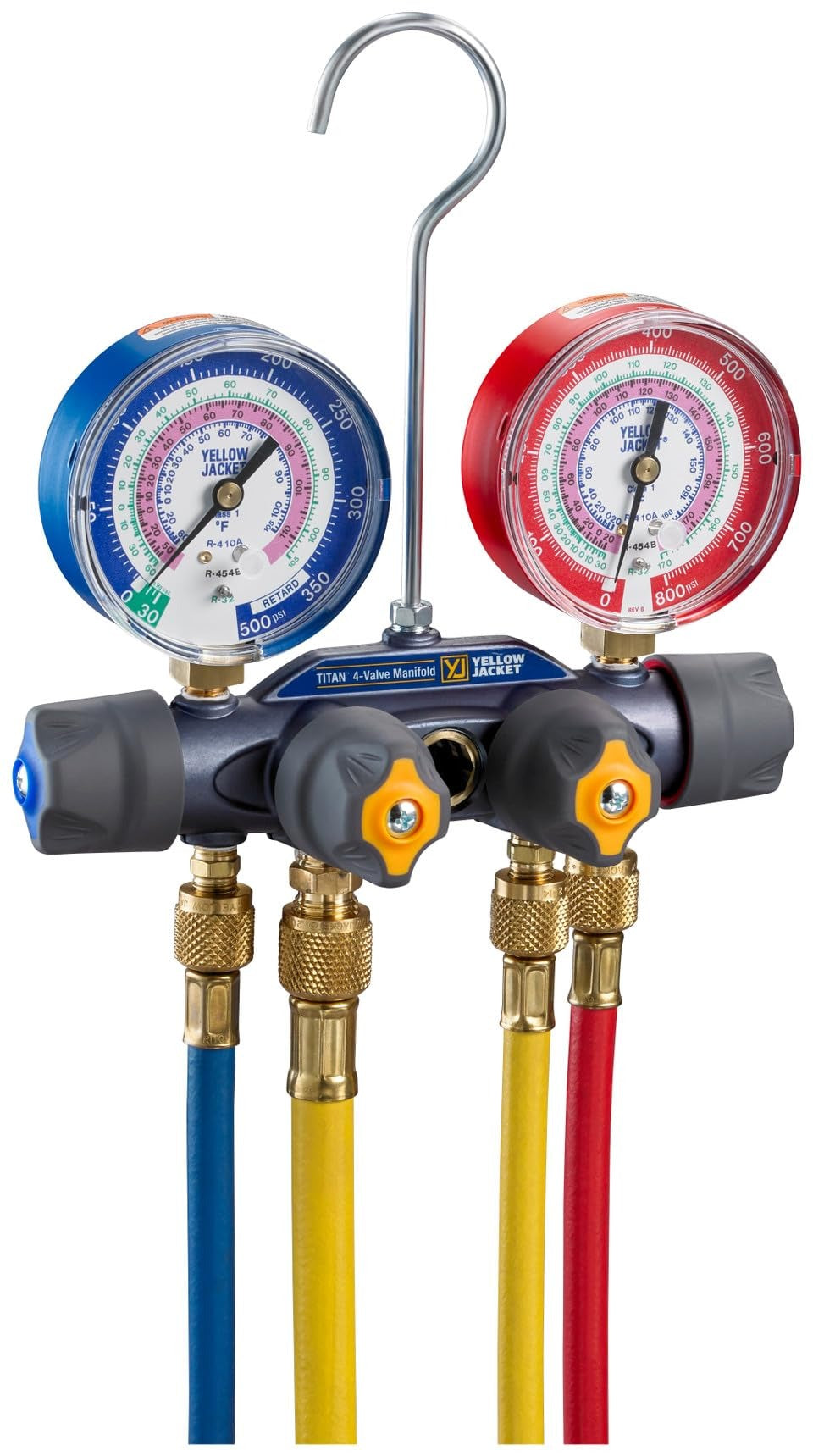

Yellow Jacket 49975 4-Valve Titan Test/Charging Manifold (3-1/8 inches Gauges, 60 inches Hoses)

Product Description

The Yellow Jacket 49975 is a 4-valve Titan test/charging manifold for diagnostics, evacuation, recovery, and charging of refrigerants R32, 454B, and 410A (A2L compatible). It has a forged aluminum alloy body, front access for field recalibration, and a sight glass to view refrigerant movement and condition. The fourth hose connection eliminates hose switching during service; included 3-1/8" gauges, 60" Plus II hoses, and a 3/8" vacuum port support faster evacuation.

• Four-valve design with a fourth hose connection for diagnostics, recovery, charging, and evacuation without switching hoses
• 3/8" vacuum port compatible with larger hose to reduce evacuation time by up to 33%; includes 3-1/8" gauges and 60" Plus II hoses
• Forged aluminum alloy body, front access for field recalibration, double O-ring piston, and 100 mesh in-line filters on flare fittings

Product Highlights

A2L compatible 4-valve manifold with forged aluminum body, sight glass, front-access recalibration, 3-1/8" gauges, and 60" Plus II hoses.

Product Information

Standard Information

• Brand: YELLOW JACKET
• Manufacturer Part Number: 49975
