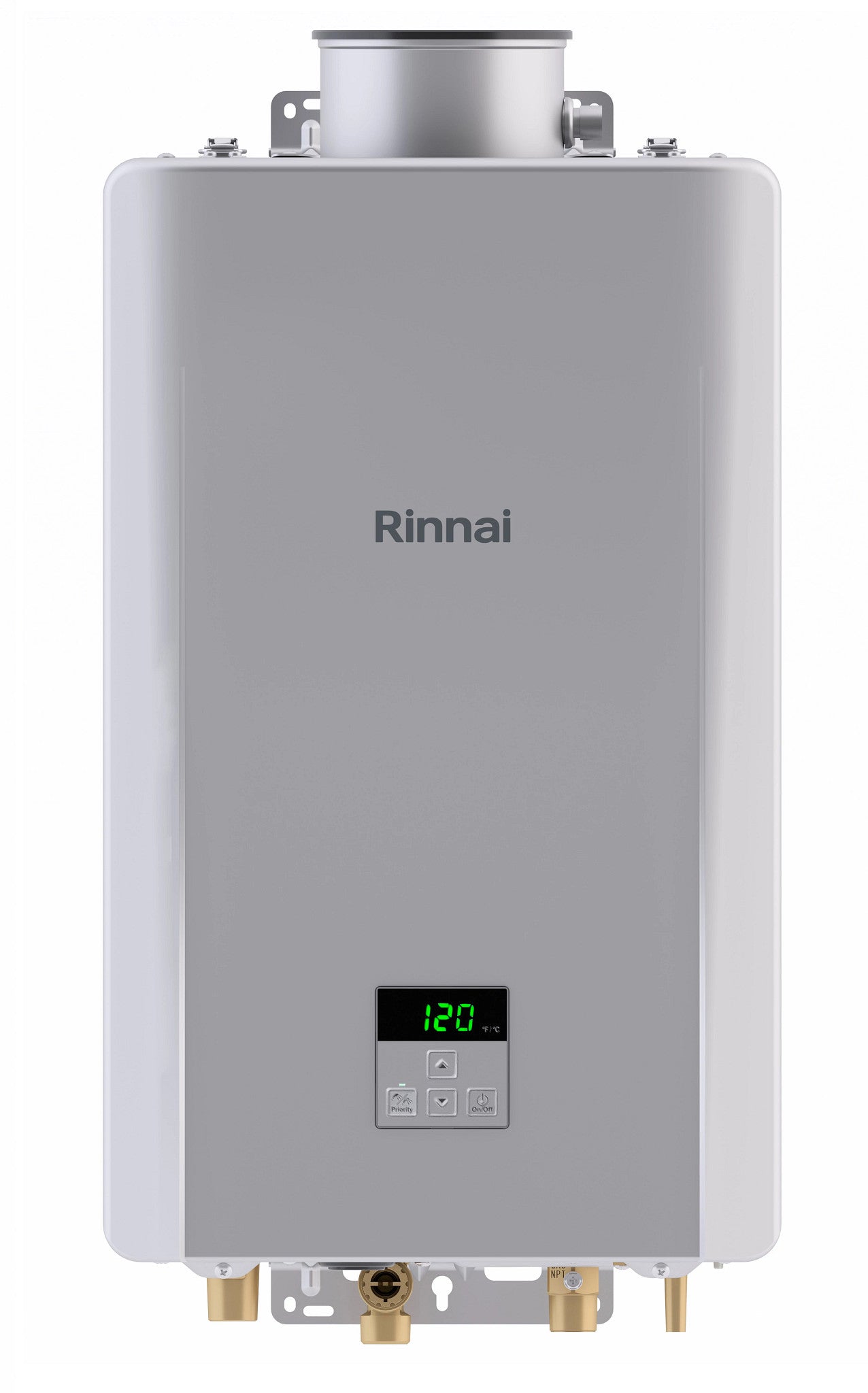

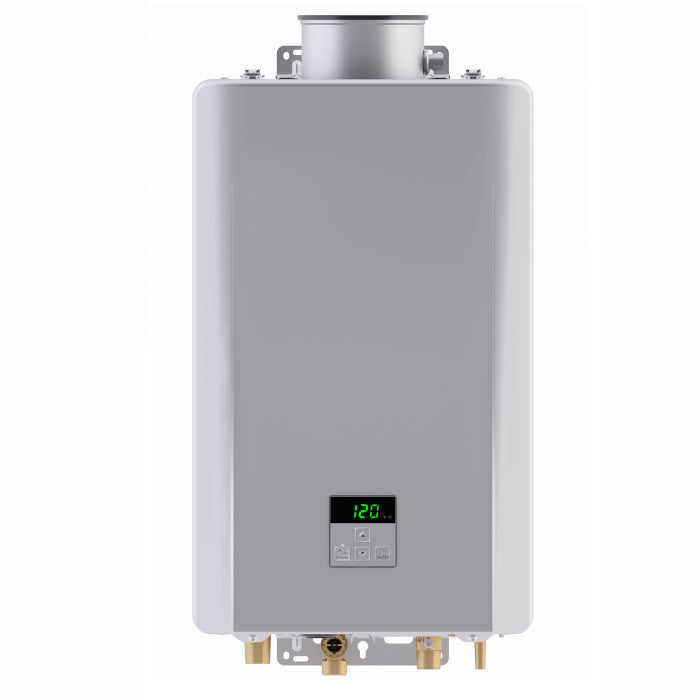

Rinnai re199i re model series 9.8 gpm

Product Description

The RINNAI RE199i from the RE Model Series is a natural gas, non-condensing tankless water heater, combining high efficiency and comfort. Ideal for small to medium homes, it's easy-to-install and reliable for indoor locations. It delivers hot water with a flow rate of 0.13 to 9.8 GPM and features 199,000 BTUs.

• High Efficiency
• Up to twice the lifespan of most tanks
• Never run out of hot water

Product Highlights

Compact and efficient, this tankless water heater provides a continuous supply of hot water for residential use.

Product Information

Standard Information

• Brand: RINNAI
• Manufacturer Part Number: RE199i

Technical Specifications

• Product Depth: 10.77 in
• Product Height: 27.28 in
• Product Width: 14.05 in
• Gas Type: Natural Gas
• Installation Type: Indoor
• Recirculation Capable: Yes
• Uniform Energy Factor (UEF): 0.82
• Wi-Fi Capable: Yes
• Product Use: Residential Only
• Fuel Type: Choice NG / LP
• Energy Star: No
• Condensing: No
• Built-In Re-Circulation Pump: No
• Connectivity: Yes, Module Available (Optional)
• Mobile Home Certified: Yes
• Gallons Per Minute (GPM): 0.13 - 9.8
• Temperature Setting Range: 98°F - 140°F
• Minimum Gas Consumption (BTUs): 10400
• Maximum Gas Consumption (BTUs): 199000
• Thermal Bypass Valve: No
• Isolation Valve: Optional (sold separately)
• Venting: 3"/5" Concentric
• Water Connection Size: 3/4" NPT
• Voltage: 110-120V
• Amps: 4
• Circuit Breaker Amps: 10
• Minimum Gas Consumption Btu/h: 10,400
• Maximum Gas Consumption Btu/h: 199,000
• Flow Rate (Min-Max): 0.13 - 9.8 GPM
• Max Flow Rate with Parameter Adjustment: 9.8 GPM (37 L/min)
• Activation Flow Rate: 0.4 GPM (1.5 L/min)
• Sound Level: 54 dB
• Temperature: 98°F-140°F (37°C-60°C) 110°F-185°F (43°C-85°C) with MCC-601 controller
• By-Pass Flow Control: Bypass Servo Control
• Ignition System: Direct Electronic Ignition
• Efficiency: UEF: 0.82
• High Altitude Approved: Up to 10,200 ft (3,109 m)
• BTU's: 10,400 – 199,000
• GPM: Up to 9.8
• Recirculation Control: Built-in
• Intelligent Recirculation: Smart-Circ™
• Use: Indoor/Outdoor use
