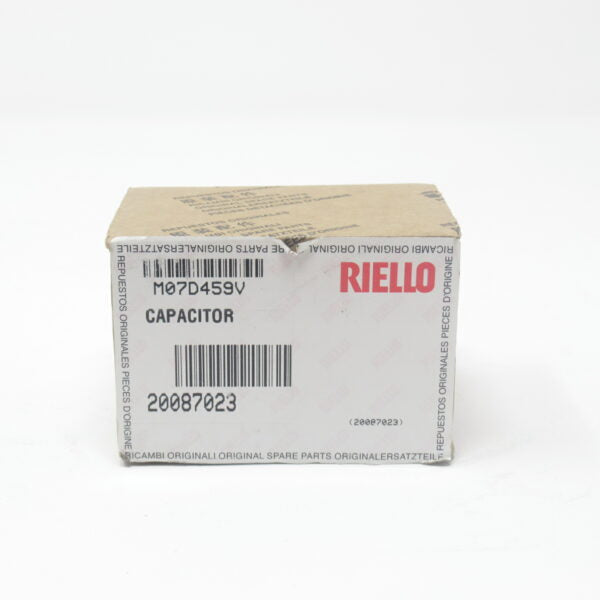

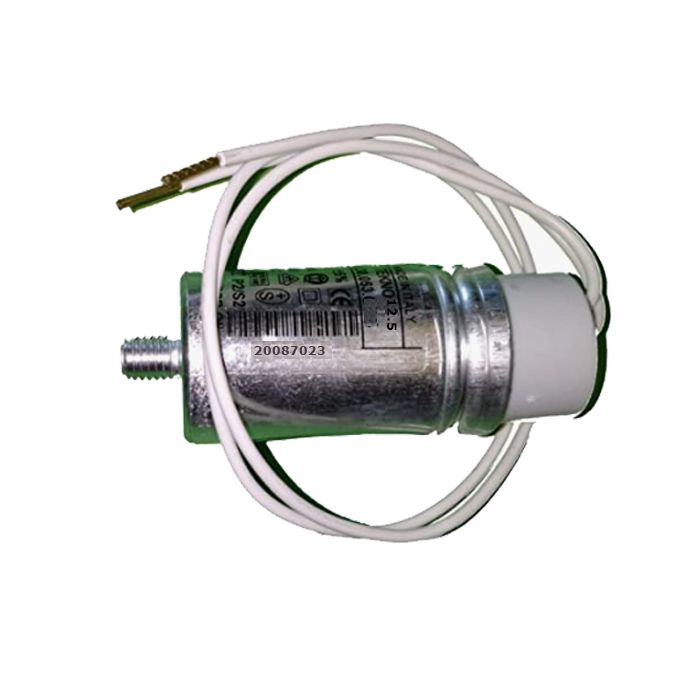

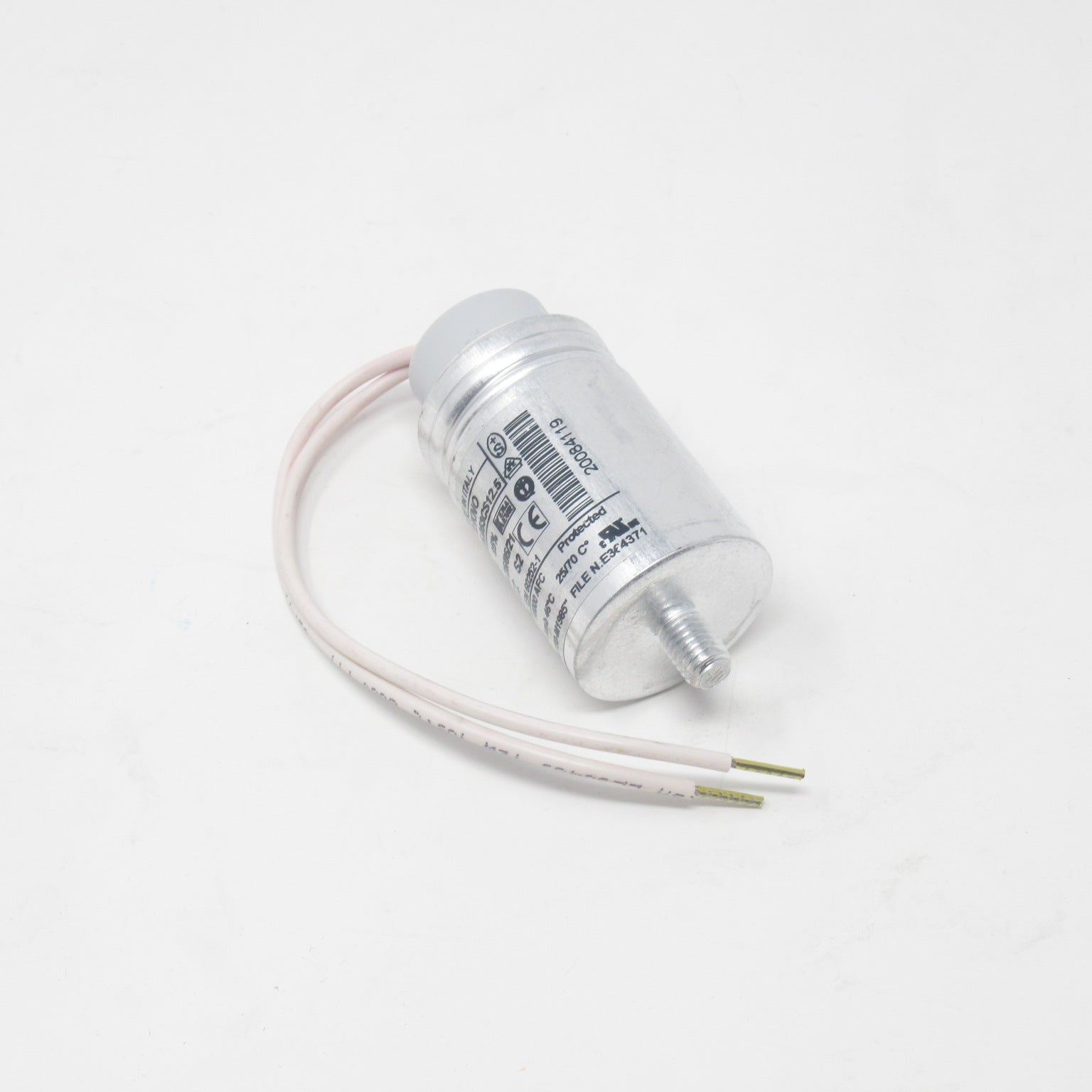

Riello 20087023 12.5uF Burner Capacitor

Product Description

The Riello 20087023 is a 12.5 microfarad capacitor suitable for use in residential applications. This capacitor works efficiently with Riello 40 Series F3 and F5 oil burners, including F10, M3, M5, and M10 models. It meets CSA B139 standards, ensuring reliability in performance.

• Compatible with multiple Riello burner models.
• 12.5 microfarads capacity with a tolerance of +/- 5%.
• Operates at AC 260V for both 50 and 60 Hz applications.

Product Highlights

This component is designed for single-phase use, with a high AFC rating of 10,000 AFC, providing stable operation without specified protection. It features a compact size, measuring two and a half inches by three and a half inches.

Product Information

Standard Information

• Manufacturer Name: Riello
• Item: Capacitor

Technical Specifications

• Used On: 40 Series F3, F5 Oil Burner
• Approval: CSA B139
• Capacity: 12.5 Micro Farad
• Application: Residential
• MPN: 20087023
• Weight: 1.00
• uF: 12.5 uF +/- 5%
• AC Voltage: AC 260V
• Frequency: 50/60 Hz
• Kvar: 0.27 / 0.32
• Phase: 1
• AFC: 10,000 AFC
